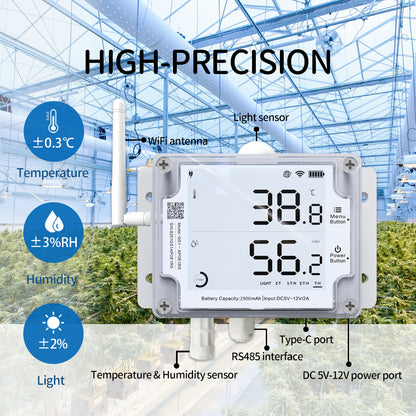

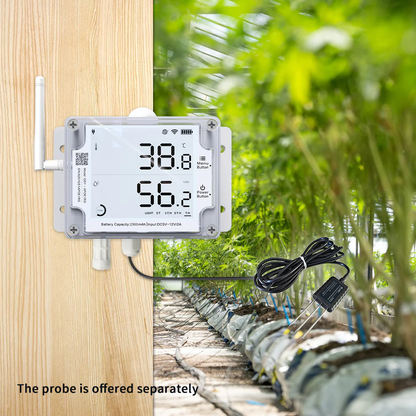

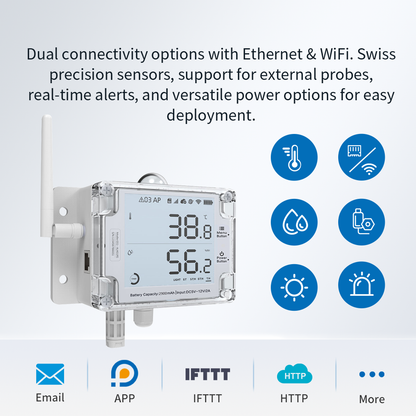

This version provides two ways of data synchronisation: 2.4GHz WiFi and Ethernet cable. When used in an environment where WiFi is not available or unstable, the Ethernet cable helps a lot. This model is embedded with internal temperature and humidity sensors. Integrated with RS485 interface, external probes can also be conneced, such as TH30S-B, soil temperature and humidity probe,etc. Because of the cable port, this version is not waterproof.
Please note, the GS1 device only supports Ethernet switch with 100 mbps or lower. Gigabit switching hub with auto-negotiation is also compatible.

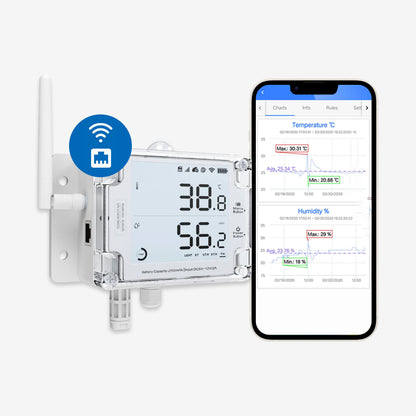

The UbiBot ® GS1 uses the cutting-edge IoT technologies to offer a more stable environmental monitoring with high performance. Via WiFi or RJ45 Ethernet cable, it detects environmental data all day round and automatically syncs all the data to the UbiBot ®IoT Platform. The clear 4’’ screen allows you to instantly view the latest data. You can also access your device readings in real-time via our App or using a browser anywhere in the world.
Our cloud-based IoT platform offers advanced data analysis and management. It also allows you to setup real-time notifications - if a metric goes outside the range you specify, the platform will notify you through the app, by email, SMS text, voice call and HTTP, allowing you to respond promptly before costly damage happens. Please note, charges may apply to SMS text and voice call alert modes. These two modes cost the balance of the credits in your account. The IoT platform gives users access to both the real-time data and history via our mobile app or on any browser. We are now working with IFTTT (if this then that), allowing you to build custom link with other smart devices.
The device can store up to 300,000 records in its internal memory, which can protect your data against network failure. Even if the network fails, the UbiBot GS1 still stores readings, thus ensuring there are no gaps in the data history.

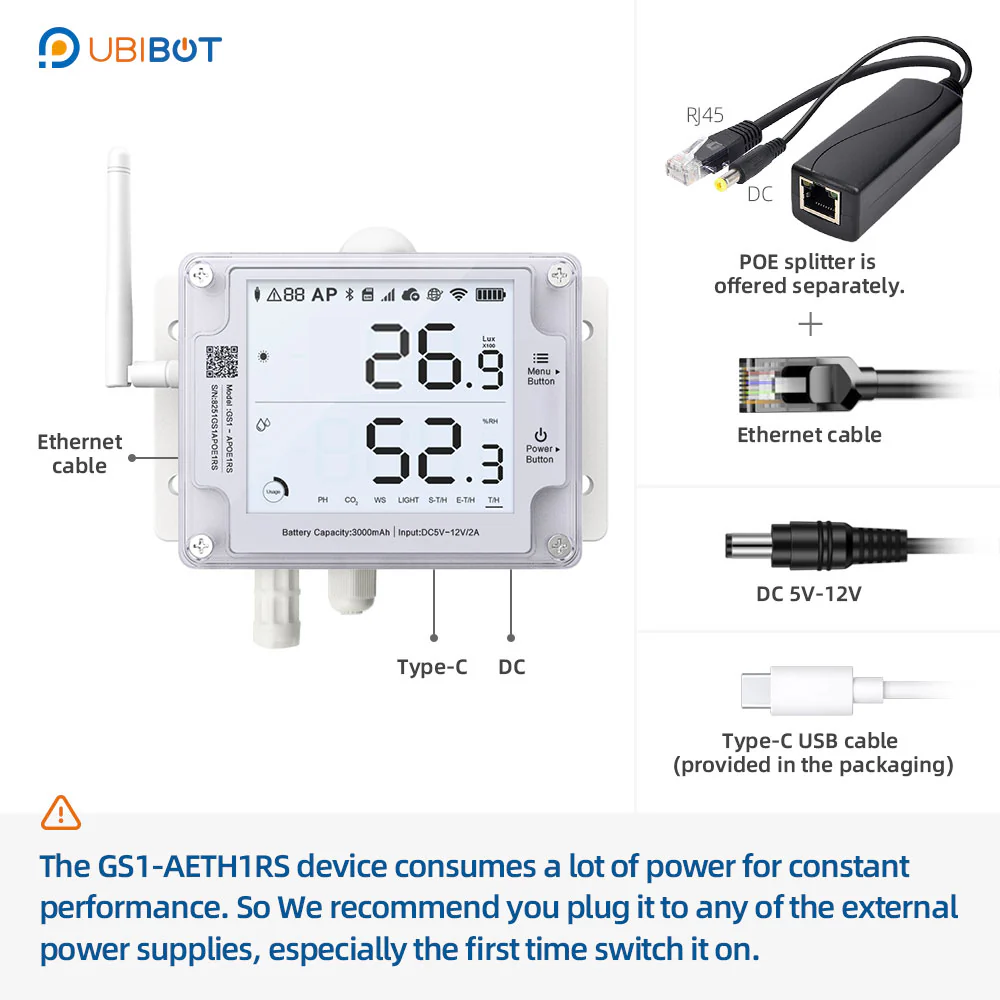

The device supports three types of power supply: internal lithium batteries, Type-C 5V, and DC 12V. The 3000mA batteries ensure a long working time.

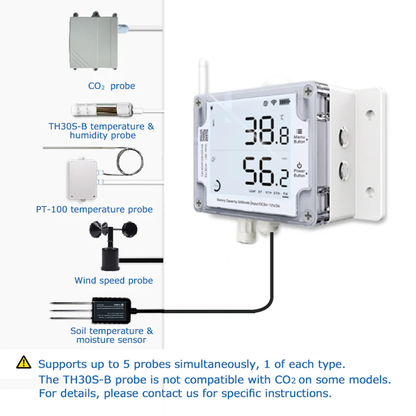

External Probe Selection:
- UbiBot GS1 supports multiple types of external probes, including

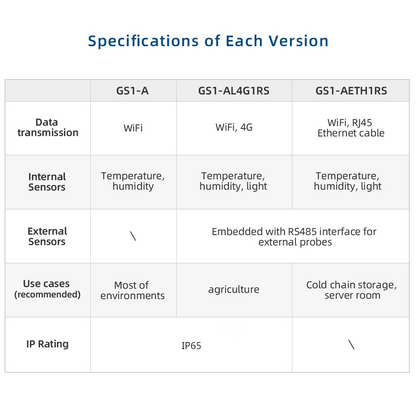

|Weight||450g ± 3g|
|Dimensions||11.5 x 9 x 5.5 cm|
|Material||flame resistant ABS+PC|
|Power Source||Internal Lithium batteries, Type C 5V, DC 12V|
|Battery Capacity||2900 mAh|
|Temperature||-20℃ to 60℃( -4℉ to 140℉)|
|Humidity||10% to 90%|
|External Light||0-83k lux|
|Accuracy||Temperature ±0.3 ℃, humidity ±3%, ambient light ±2%|
|Memory||300,000 sensor records|
|WiFi Specifications||2.4GHz, channels 1-13 (5GHz WiFi NOT supported)|
|Ethernet Specifications||RJ45 Ethernet cable, Ethernet switch:100 mbps or lower|
|Optional RS485 Probes||
TH30S-B probe, Soil temperature and humidity probe, PT-100 probe
