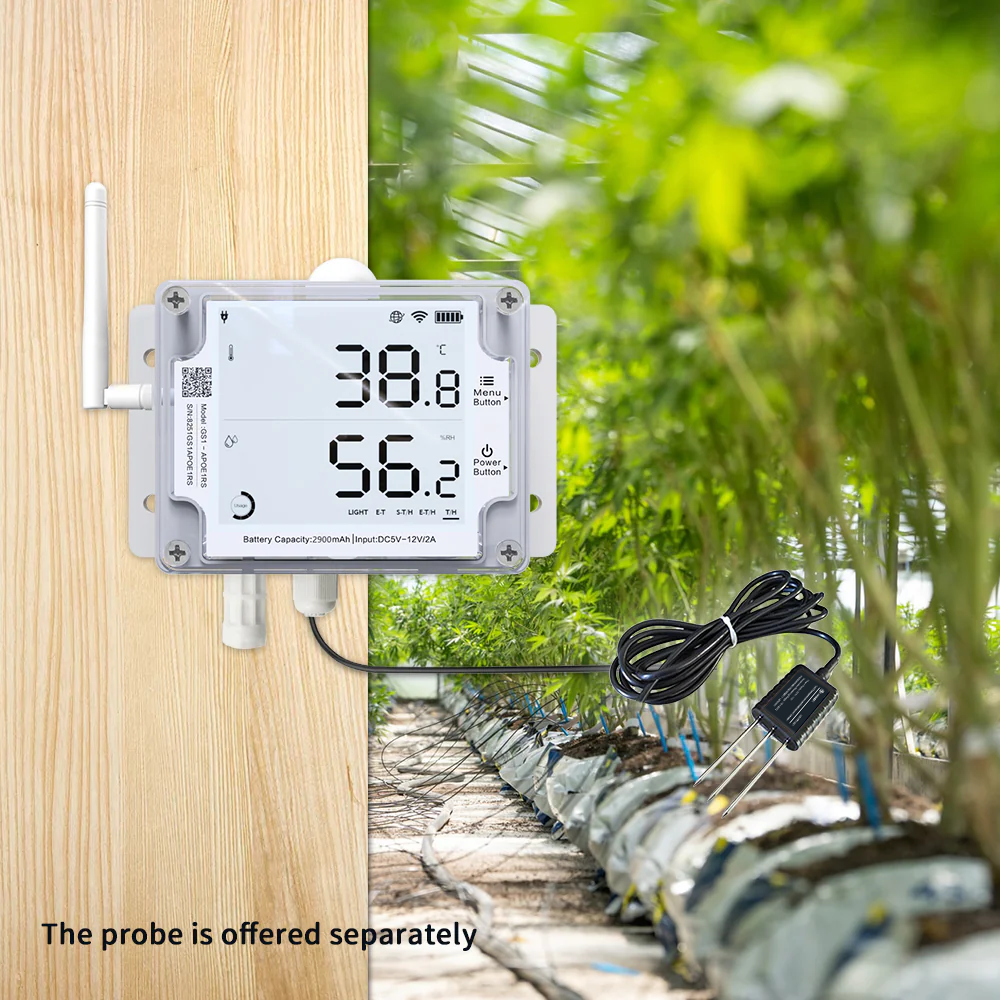

The UbiBot GS1-A1RS offers advanced environmental monitoring with integrated light sensors and RS485 expansion for external probes, making it perfect for diverse industries like agriculture, cold storage, and laboratories. It can monitor temperature, humidity, and light levels while supporting external probes for parameters such as soil moisture, CO2, and extreme temperatures.
Designed for harsh conditions, the IP65-rated GS1-A1RS is built to last. With its 2500mAh lithium battery, it offers up to six months of monitoring. The device connects seamlessly to 2.4GHz WiFi networks, providing real-time data access and alerts through the UbiBot platform. You can manage alerts for unusual readings or network issues via the free app, email, or IFTTT, with the option for SMS and voice notifications (extra charges apply).
Whether you're monitoring a greenhouse, server room, or cold storage facility, the GS1-A1RS ensures 24/7 monitoring with 200MB of free cloud storage, enough for two years of data. Full data export/import capabilities (PDF/CSV) provide comprehensive reporting. Additionally, the RS485 port allows you to connect multiple external probes, tailoring your system to specific monitoring needs.
Technical specifications
|
Network
|
2.4GHz WiFi (Channels 1-13); Does not support 5GHz WiFi
|
|
Power Source
|
2500mAh lithium battery / Type-C USB / DC 5-12V
|
|
External Probe Support
|
RS485-compatible probes such as temperature & humidity, PT-100, soil moisture, and CO2 sensors
|
Measurement Range
|
Temperature
|
-4°F to 140°F (-20°C to 60°C)
|
|
Humidity
|
10% to 90% RH (non-condensing)
|
|
Light
|
0.01 to 157K lux
|
|
Internal Memory
|
300,000 sensing records
|
|
App Requirements
|
iOS 16+, Android 11+, Windows 7+
|
|
Data Sync Interval
|
Minimum 1 minute
|
External probes supported
Supporting TH30S-B, Soil Probe, PT-100, Wind Speed Sensor, CO2 Probe; only one of each type can be connected at a time. GS1-A1RS-1DS also supports 1 x DS18B20-Audio Temperature Probe, while Wind Speed Sensor is incompatible with DS18B20-Audio Temperature Probe.
One single pack includes
1 x GS1-A1RS device; 1 x external antenna; 1 x manual book; 1 x Type-C USB cable
The GS1 series device has an IP65 protection rating, which effectively prevents dust ingress and resists
low-pressure water jets. However, when exposed long-term to harsh outdoor environments (such as continuous
rainfall, high humidity, or intense sunlight), there is still a potential risk of moisture or rainwater
gradually infiltrating, which could affect the device's long-term stability and service life.
It is recommended that for outdoor use, the device be installed in a weatherproof outdoor distribution box
or other sheltered environment to enhance its reliability and durability in complex climatic conditions.
