Ubibot Motion Sensor MS1P
Cloud-Supported WiFi / Rj45 Ethernet Remote Infrared Motion Sensor; Big Data Cloud-Based App and Web Platform
UbiBot ® MS1P is a compact infrared motion sensor that allows you to detect movement and occupancy in your target environment. It monitors the environment all day round and automatically syncs all the data to the UbiBot® IoT Platform, which gives you access to both real-time and historical data through the UbiBot App or Web Console platform from anywhere in the world.
This motion sensor can detect even the slightest movement of humans or animals. UbiBot ® IoT Platform offers advanced data analysis and management. It allows you to set up real-time notifications — if there is any movement, you will receive alerts via the app, email, SMS, voice call, and HTTP, allowing you to respond promptly before costly damage happens.
UbiBot ® MS1P works with IFTTT (if this then that), Alexa, and Google Home, allowing you to build custom links with other smart devices. For example, you will be able to set the light to turn on and off as people enter and leave the room.
UbiBot ® MS1P features multiple power supply and network connection options. It supports two types of connection: 2.4 GHz WiFi and Rj45 Ethernet, and three types of power supply: Micro USB, RJ45 cable powered supply, AC-220 V.
- Remote infrared motion sensor, up to 12 meters detection distance
- Wide detection range: horizontal 105 degrees, vertical 40 degrees
- 2 types of network connection: 2.4 GHz WiFi and RJ45 cable, no hubs or gateways required
- Free App & Web Console to access and monitor real-time data remotely, no subscription fee
- Multiple ways of receiving real-time alerts: App notifications, emails, phone calls, SMS, HTTP
- Working with IFTTT, Alexa, Google Assistant, Google Sheet
- Easy setup with free UbiBot App or PC tools
- Keep your home, office, warehouse safe and under guard
- Three types of power supply: Micro USB, RJ45 cable powered supply, AC-220 V; stable working conditions and easy deployment ensured
- Compliance with CE, FCC, FDA CFR21, IC, RoHS
UbiBot ® offers a revolutionary way to monitor environmental conditions where they matter. The sensors synchronize data to UbiBot ® IoT Platform using WiFi, Cellular or Ethernet connection (depending on the specific model purchased). Users can then access data from anywhere via a smartphone or the Web console.
Data Management: Manage all your IoT data in one place; you could add as many devices as you want to one UbiBot account.
Unlimited Storage: Unlimited cloud-based storage ensures you will never run out of space. This allows you to view all your historical data via UbiBot App or Web.
Free App & Web Console: Using UbiBot App and Web Console is free. Powerful and thoughtful features provide you brilliant experience.
Analysis and Visualization: Use powerful analysis and visualization tools to get the most out of your data; spot trends and direct comparisons.
Real-Time Alerts: Fully customizable alert system will notify you via App notifications, emails, phone call/SMS, HTTP whenever any metric goes out of the range preset.
Highly Secure Platform: UbiBot IoT platform is designed to keep all your data secure so you never have to worry about hackers or other security issues.
Working with IFTTT, Alexa, Google Assistant, Google Sheet
Compliant with FDA CFR21
Real-time and history data
The UbiBot Platform is a cloud-based IoT platform where all measured data is uploaded and stored. UbiBot App and Web Console allow you to view current data as well as historical data in graphs. The adjustable Y-axis scale allows you to view any tiny fluctuations in the curve.
Customizable alerts and bulk operation
Setting and receiving alerts on your devices helps you to get notified of the conditions timely. When you have many devices to manage, it’s time-consuming to set each alert rule one by one. Therefore, we’ve developed a bulk operation module with which you can set the same rule for many devices at a time.
Free data export
On UbiBot Platform, you can download the history data in CSV or PDF format. The CSV file only contains raw data, while the PDF file is a summarized report with average, maximum and minimum value within the chosen period. The PDF file is much easier to read and archive.
Device sharing and bulk operation
For business users, centralized control over multiple devices is available, with no limit on the number of devices in one account. Also available are bulk operations that apply to sensor settings, alerts, and remote control routines. Devices can be shared with other people, which allows for distributed management by different colleagues.
Intelligent automation in UbiBot platform
UbiBot is committed to building intelligent industrial and home ecosystems. By integrating temperature and humidity sensors and the smart plug SP1 in one system, automated operation is achieved through data linkage. For example, fans can be switched on when the temperature rises to 30 °C.
UbiBot is an open platform that provides cloud-based services while supporting customers to use their own storage servers. With the data forwarding service, you can forward the data collected by your device to your own private URL to protect privacy.
Location tracking and logging
UbiBot GS1-PL4G1RS is embedded with GNSS (Global navigation satellite system) for positioning. Through mobile data communication, real-time location information is transmitted to the platform and recorded. The UbiBot platform integrates this data, plots it into a trajectory map, and presents it.
UbiBot platform supports data calibration both on the platform level as well as the device level. One-step calibration, instant display, no impact on historical data.
SIM card management
When using UbiBot Global SIM to transfer data, you can manage it by yourself. Unlike other SIM cards with a standard monthly fee and traffic amount, our SIM supports many types of plans. Choose the one that suits you now, and change to another next time. No arrearage and no extra charge.
|Detection distance||12 meters|
|Detection angle||vertical 40 degrees, horizontal 105 degrees|
|Operating temperature||-10 °C to 50 °C ( 14 °F to 122 °F)|
|Operating humidity||≤ 90% RH, No condensation|
|Memory||300,000 sensor records|
|WiFi||2.4GHz or 2.4/5GHz, channels 1-13 (5GHz WiFi NOT supported)|
|Bluetooth||BT4.2, Classic BT&BLE supported|
|POE standard||IEEE 802.3-2005|
|Materials||Flame resistant ABS + PC|
|Dimensions||80 x 80x 48 mm|

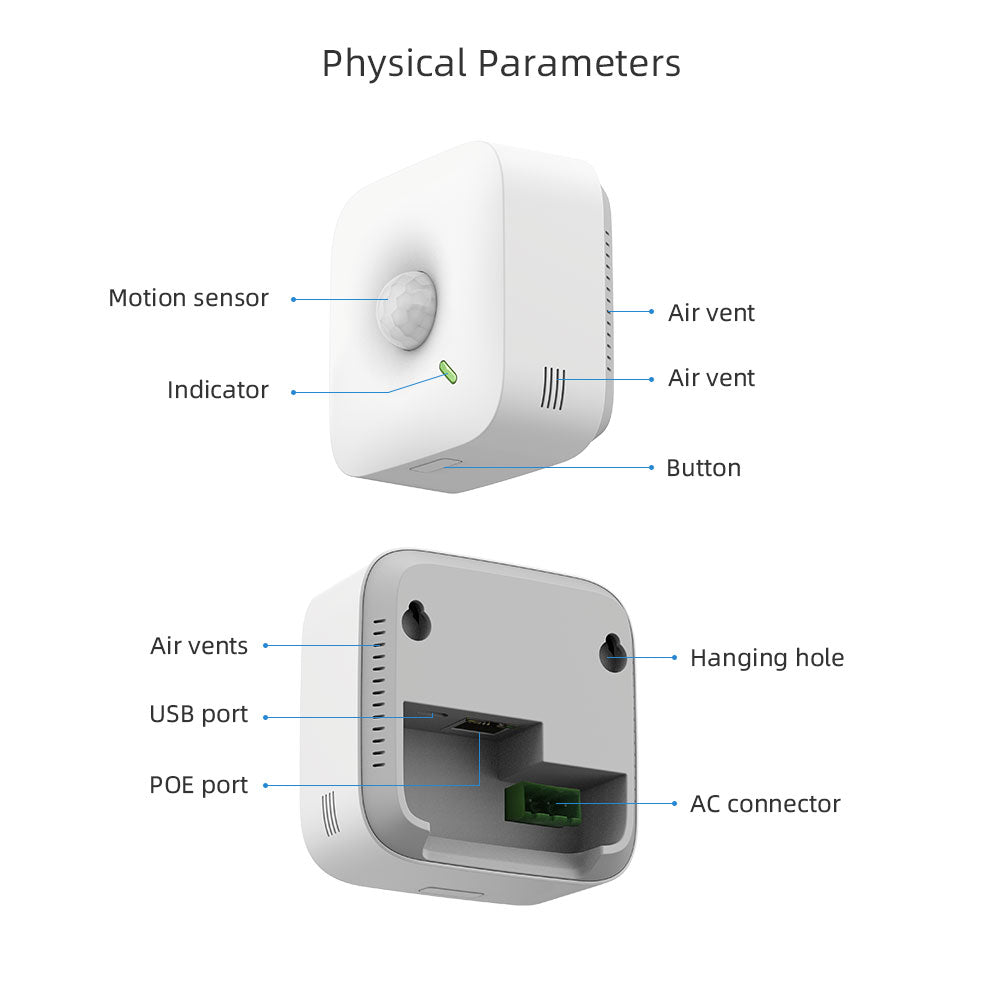

|Ports||1 x Micro USB; 1 x RJ45|
|Power Source||Micro USB (5 V) / POE power supply (5 V) / AC power supply|
One single pack includes
1 x MS1P device; 1 x Micro USB cable; 1 x Manual book; 1 x Pluggable Terminal Block Connector; 2 x Screw
|UbiBot MS1 User Guide||More details|
|UbiBot Cloud Platform User Guide||More details|
|UbiBot App User Guide||More details|
|UbiBot PC Tools User Guide||More details|
|UbiBot Cloud Platform Data Forwarding||More details|
|UbiBot On-Premises Platform||More details|
|Using UbiBot with Alexa||More details|
|Using UbiBot with IFTTT||More details|
