UbiBot WS1 Pro Greenhouse bundle

The device included in this bundle is WiFi only model: The device can only connect to 2.4GHz WiFi router network. 5GHz WiFi is NOT supported.

The UbiBot ® WS1 Pro is a state-of-the-art environmental monitoring system that leverages the latest IoT technologies. Collect environmental data in real-time and automatically sync all the data to the UbiBot ®IoT Platform using WiFi. The clear 4.4’’ screen allows you to instantly view the latest data. You can also access your device readings in real-time via our App or using a browser anywhere in the world. The embedded RS485 interface ensures your use of external probe in the most extreme conditions.

Our cloud-based IoT platform offers advanced data analysis and management. It also allows you to setup real-time notifications - if a metric goes outside the range you specify, the platform will notify you through the app, by email, SMS text, voice call and HTTP, allowing you to respond promptly before costly damage happens. Please note, charges may apply to SMS text and voice call alert modes. These two modes cost the balance of the credits in your account. The IoT platform gives users access to both the real-time data and history via our mobile app or on any browser. We are now working with IFTTT (if this then that), allowing you to build custom link with other smart devices.

The device can store over 300,000 records in its internal memory, which can protect your data against network failure. Even if the network fails, the UbiBot WS1 Pro still stores readings, thus ensuring there are no gaps in the data history.
The data sync interval can be set by you. This allows you to balance battery life against frequency of data capture. With the default data sync interval of 15 minutes, using WiFi connection, the device has a battery life of up to 4- 6 months using 4 AA alkaline batteries.

External Probe Selection:

- UbiBot WS1 Pro has two Micro USB ports for connecting external probes or USB power-supply.

- Each of Micro USB port supports 1 x external DS18B20 temperature probe. Temperature range and option can be found here.
- The lower Micro USB port also supports one of the following three probes at a time:

TH30S-B temperature and humidity probe

Soil Temperature and Moisture Sensor

PT 100 Industrial-grade Temperature Probe

- We recommend to buy On-board Port Splitter (One Male to Two Female) if you want to use external USB power-supply and two external probes at the same time.

Water Resistant / Rainproof Option for Outdoors:

The WS1 Pro is not water resistant.  For outdoor usage, we suggest to use UbiBot water-resistant case.

Package List

● 1 x WS1 Pro device (manual included)
● 1 x Water-resistant case
● 1 x TH30S-B temperature & humidity probe (5m)
● 1 x USB splitter (optional extra)

Technical specifications

Temperature Range	-20℃ to 60℃ ( -4℉ to 140℉)
Humidity Range	10% to 90%, No condensation
Light	0-83k lux
Accuracy	Temperature ±0.2 ℃, humidity ±2%, ambient light ±2%
Memory	300,000 sensor records
WiFi Specifications	2.4GHz, channels 1-13 (5GHz WiFi NOT supported)

Physical specifications

Weight	143g ± 3g
Dimensions	12.6 x 8.6 x 2.25 cm
Colour	White
Material	Flame Resistant ABS+PC
Power Source	4 x AA batteries / Micro USB（5V/2A）
Battery Life	8-12 months (WiFi only)*
Screen	10.4 x 5cm (4.4’’)

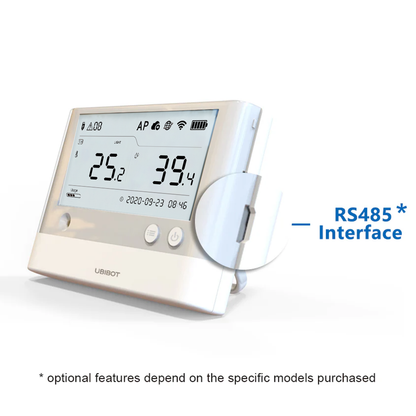

Ports	2 x Micro USB, the USB 2 is embedded with RS485 interface
External Probe	Supports DS18B20 x 2, and TH30S-B x 1 / Soil probe x 1 / PT-100 x 1

*The quoted battery life was tested using VARTA industrial batteries under stable signal conditions with default synchronisation and sampling settings.
