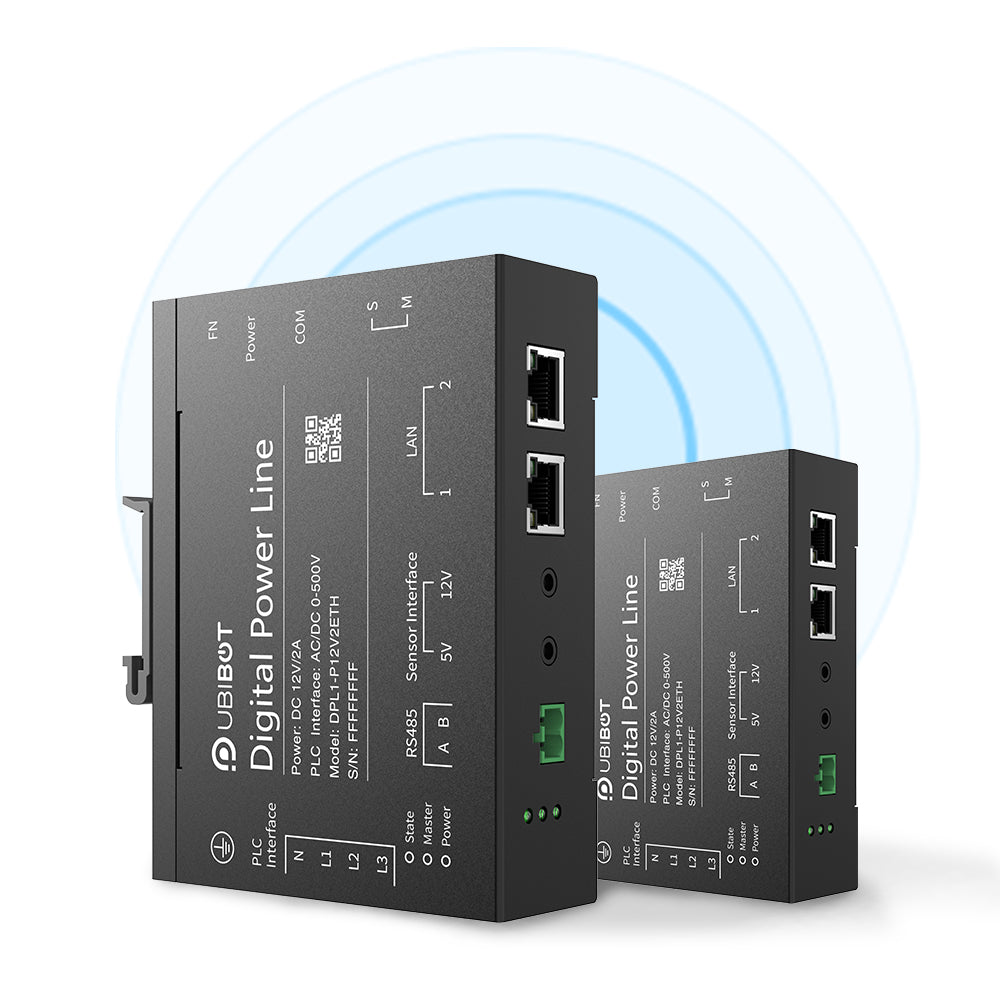

UbiBot DPL1 Digital Power Line Adapter

UbiBot DPL1 Digital Power Line Adapter

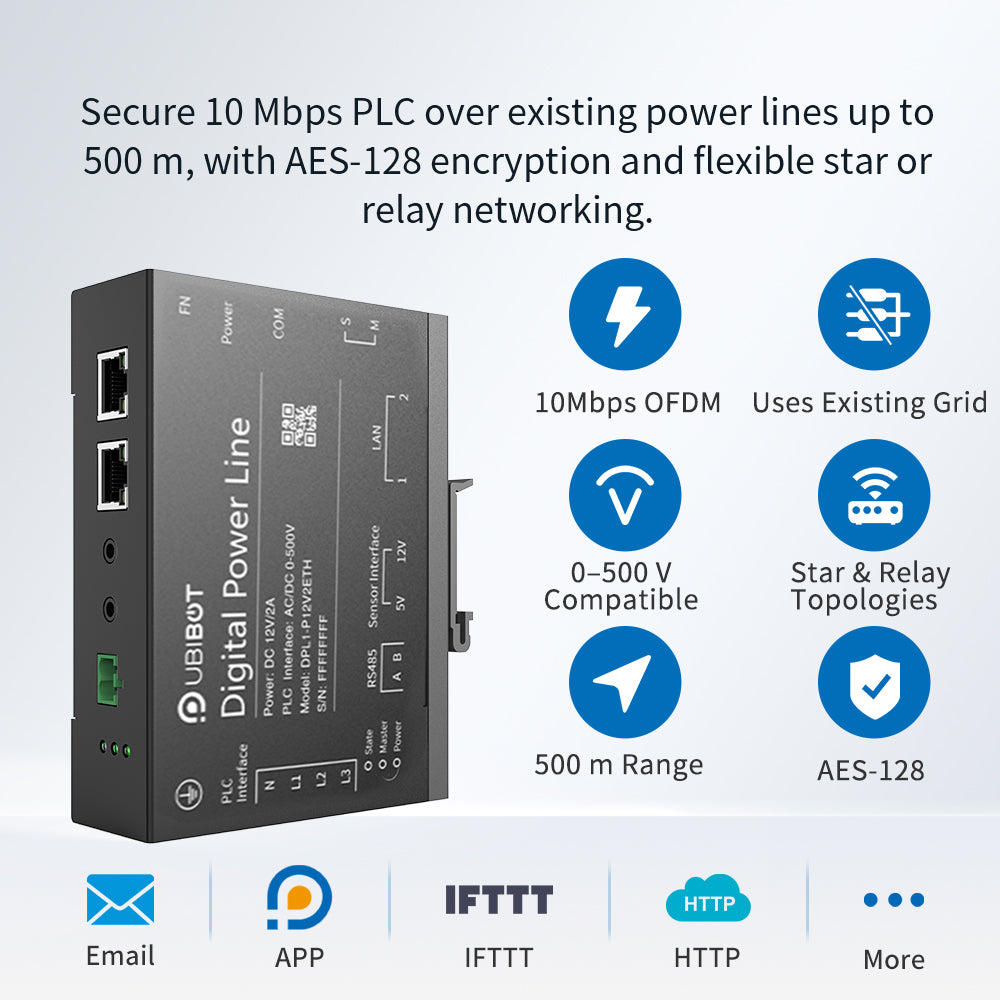

Turn Any Electrical Circuit into a 10 Mbps OFDM Network. Plug-and-Play, No Extra Cabling Required.
$ 249.00 USD
$ 249.00 USD
Sale Sold out
  • High-Bandwidth OFDM Transmission: Utilises advanced OFDM modulation across the 2-28 MHz band to deliver sustained data rates up to 10 Mbps, ensuring superior throughput for industrial applications.

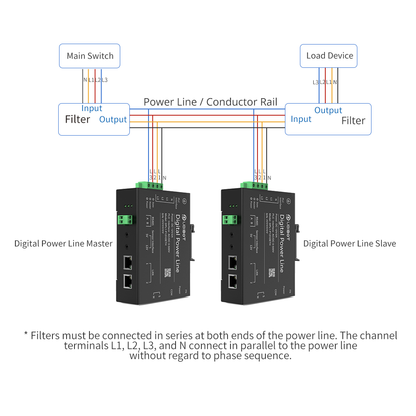

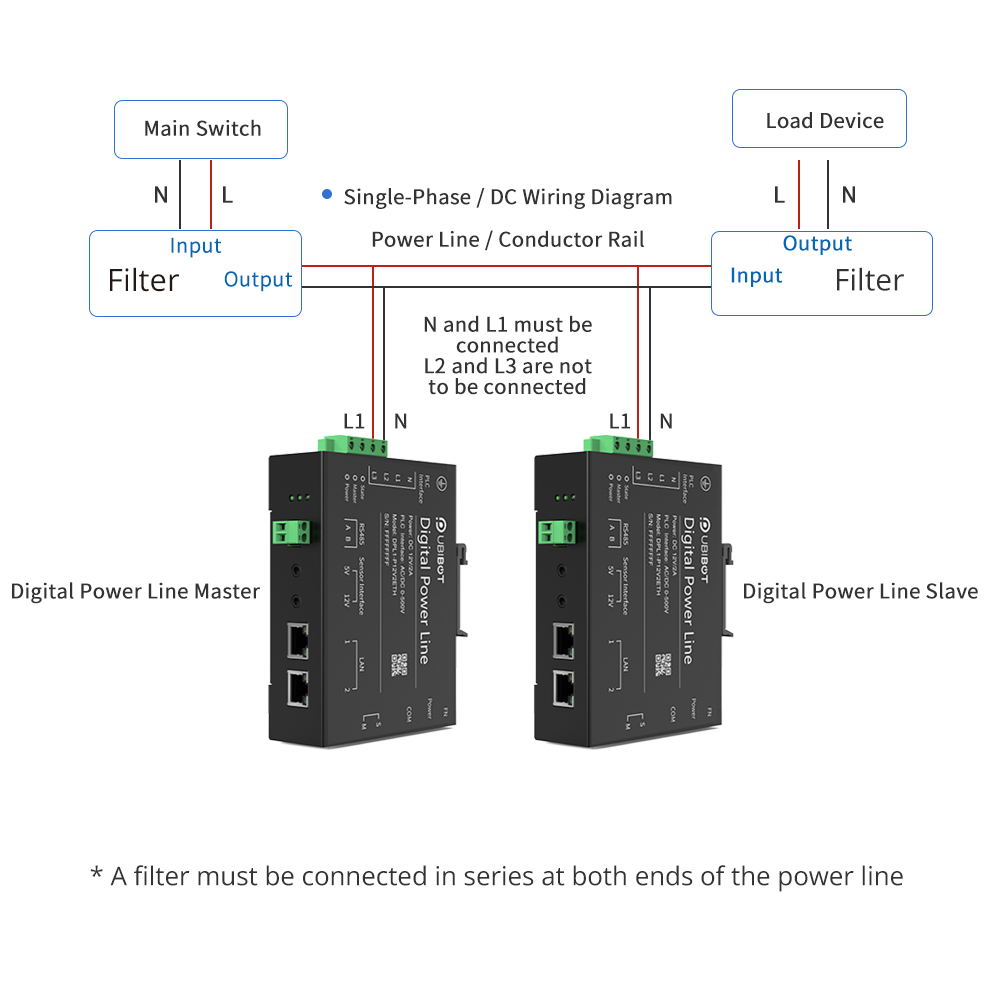

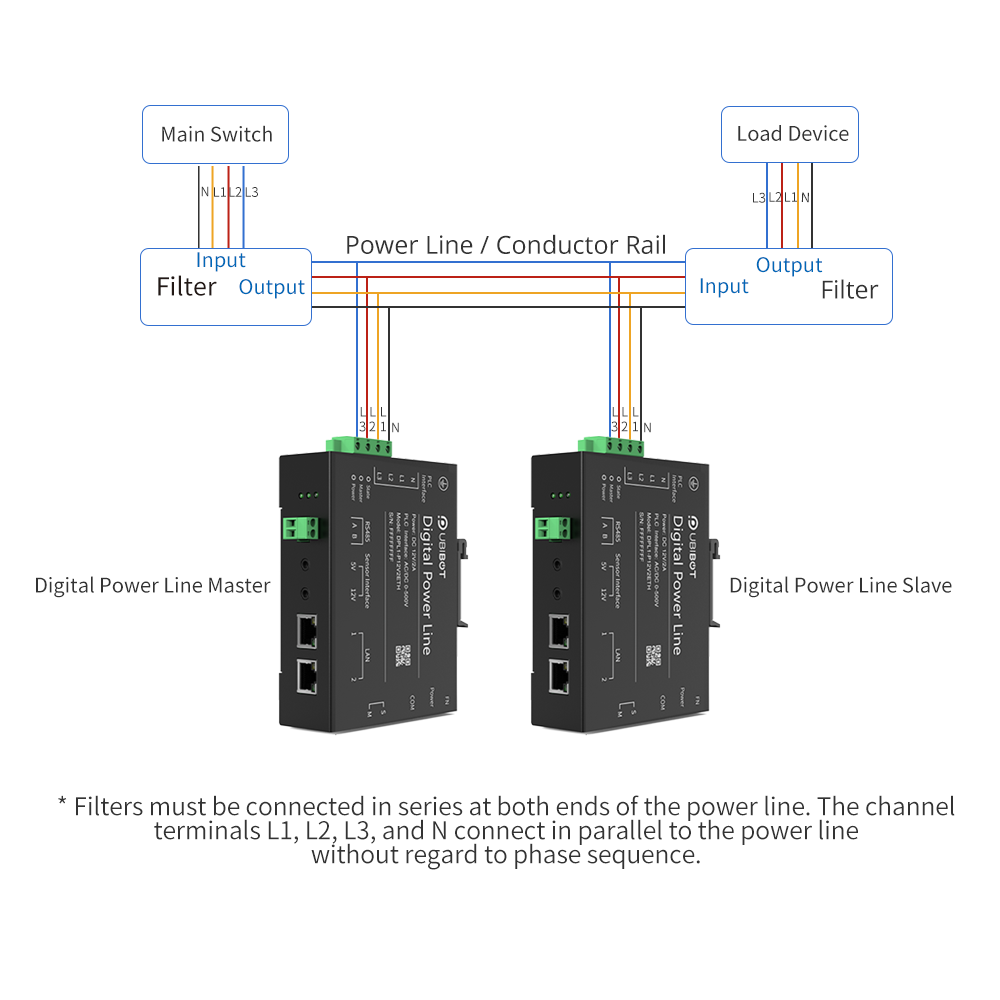

  • Simplified Deployment: Installs directly on existing AC/DC (0-500 V) power lines without additional cabling; integrated filters and self-organising routing establish a stable network immediately upon power-up.
  • Robust Reliability and Security: Guarantees sub-10 ms latency and packet loss below 0.1% with LDPC error correction, while AES-128 encryption safeguards your data against interception and interference.

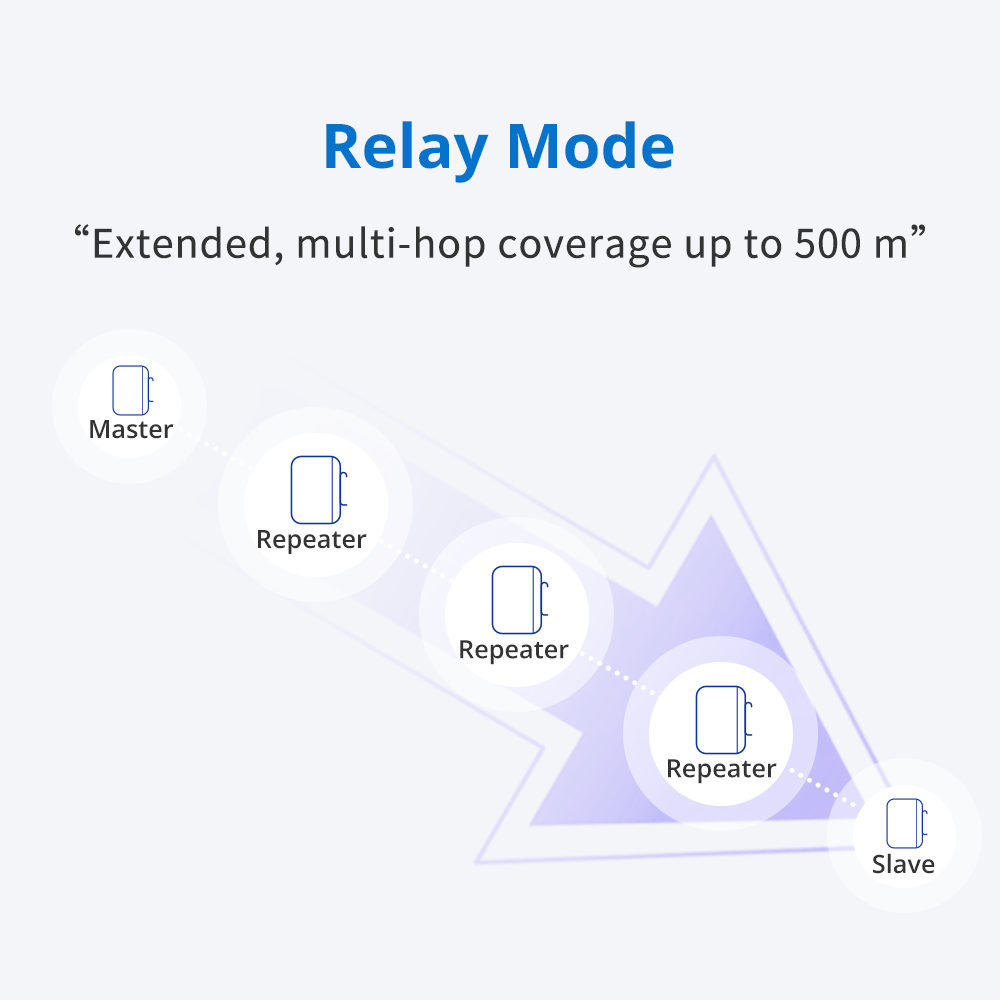

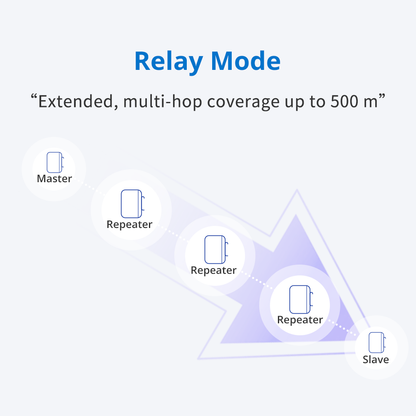

  • Extended Network Reach: Supports point-to-point transmission up to 500 m and scalable coverage up to 3-5 km using up to ten repeater nodes, suitable for large facilities, underground installations, and multi-building environments.

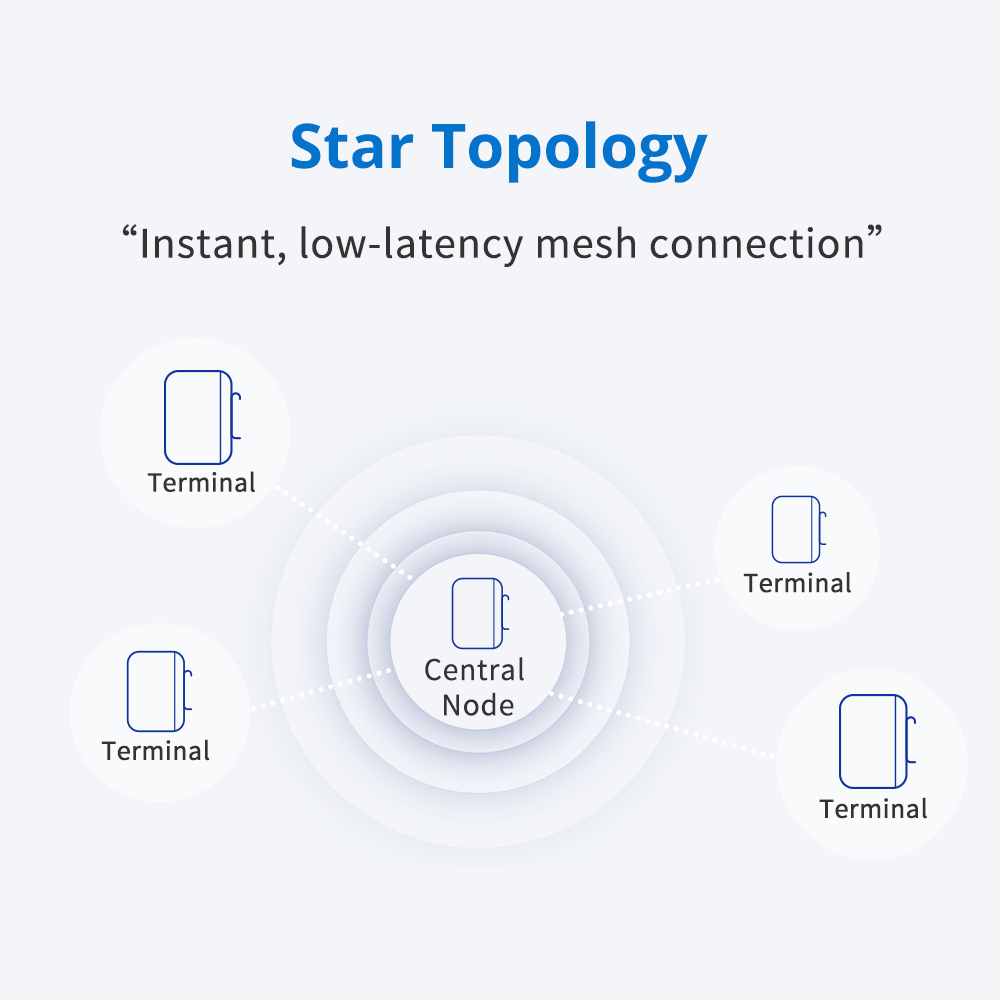

  • Flexible Topology Options: Offers both star-topology for streamlined setups and repeater-based networking for extensive deployments. The Standard Edition provides RS485 passthrough; the Advanced Edition adds dual RJ45 ports, intelligent routing, sensor interfaces, and cloud connectivity.
View full details
Description
Specification
Resources

Power line networking has never been this simple—or this fast. The UbiBot® DPL1 turns any standard AC/DC outlet into a 10 Mbps OFDM network node, so you can deploy high-bandwidth connectivity without pulling a single new cable. Just plug the DPL1 into your existing 0-500 V wiring; integrated filters and self-organizing routing instantly form a secure, ultra-reliable network with sub-10 ms latency and under 0.1 % packet loss.

Built for demanding industrial and commercial environments, the DPL1 supports point-to-point links up to 500 m and can scale to 3-5 km with repeaters—ideal for multi-building campuses, underground facilities, and large factories. Advanced LDPC error correction and AES-128 encryption keep your data safe from interference, while flexible star or repeater topologies adapt to any layout.

Choose the Standard edition for transparent RS485 passthrough, or step up to the Advanced edition with dual RJ45 ports, intelligent slave grouping, sensor interfaces, and seamless cloud integration via the UbiBot IoT platform. Deploy in minutes, manage from anywhere, and unlock industrial-grade performance over power lines you already have.

Version
Standard Version Advanced Version
Application Scenarios
Standalone operation with transparent data transmission. Suitable for networked applications and large-scale system integration.
Communication
RS485 transparent transmission mode RS485 transparent transmission with intelligent slave grouping.
External RS485 Sensor Support
Not available Supported (1 × DC 5V and 1 × DC 12V)
Network Interfaces
1 × RJ45 2 × RJ45
Switching and Routing
--
Resumable Transfer
--
Cloud-based Management
--
Remote Monitoring
--
Data Alert
--
Network Connectivity Test
--
