UbiBot Metering Network Relay NR2 – Smart metering, safe control, and complete power management at your fingertips.

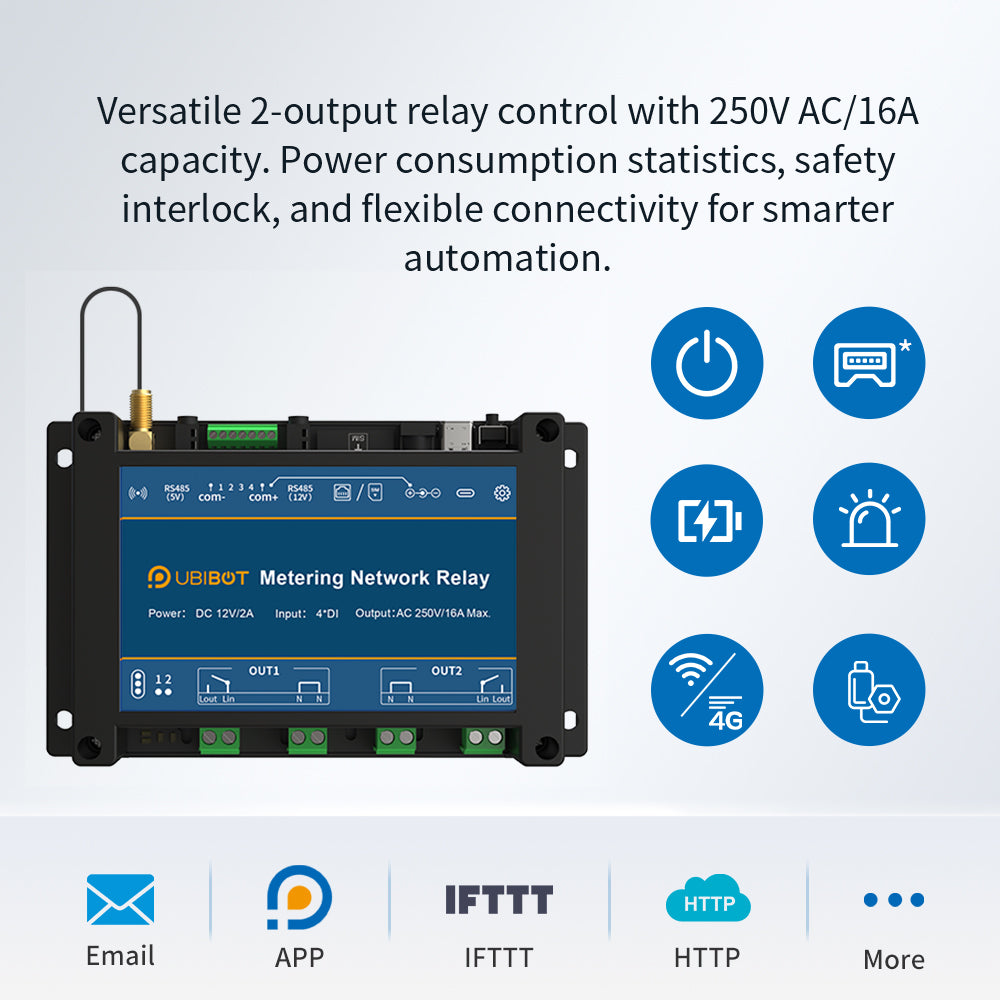

Equipped with two independent relay outputs, the UbiBot Metering Network Relay NR2 enables flexible control of separate load devices through either remote synchronized switching or individual point control. Each relay contact supports up to 250V AC at 16A and is rated for 100,000 cycles, ensuring a durable and reliable solution for diverse load management applications.

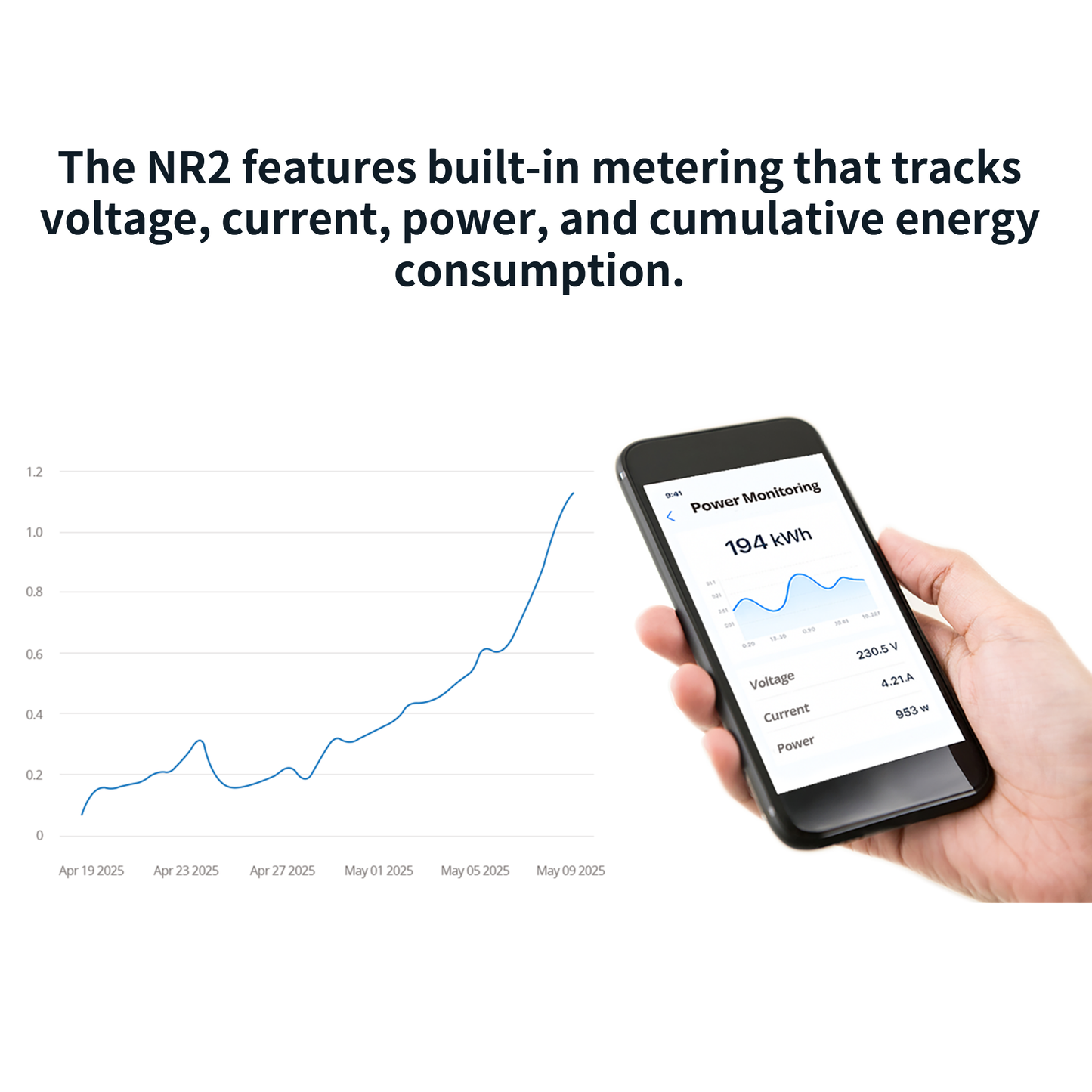

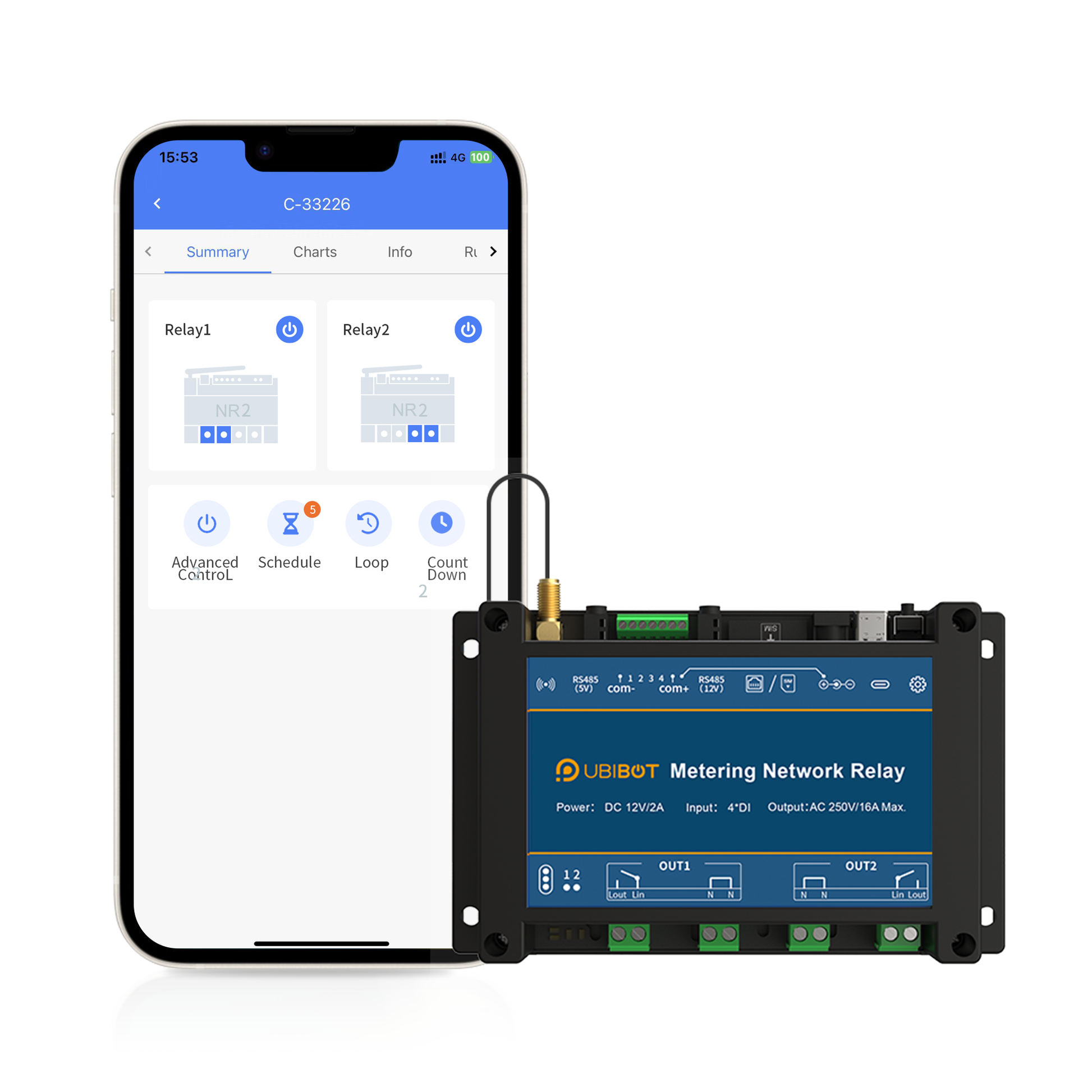

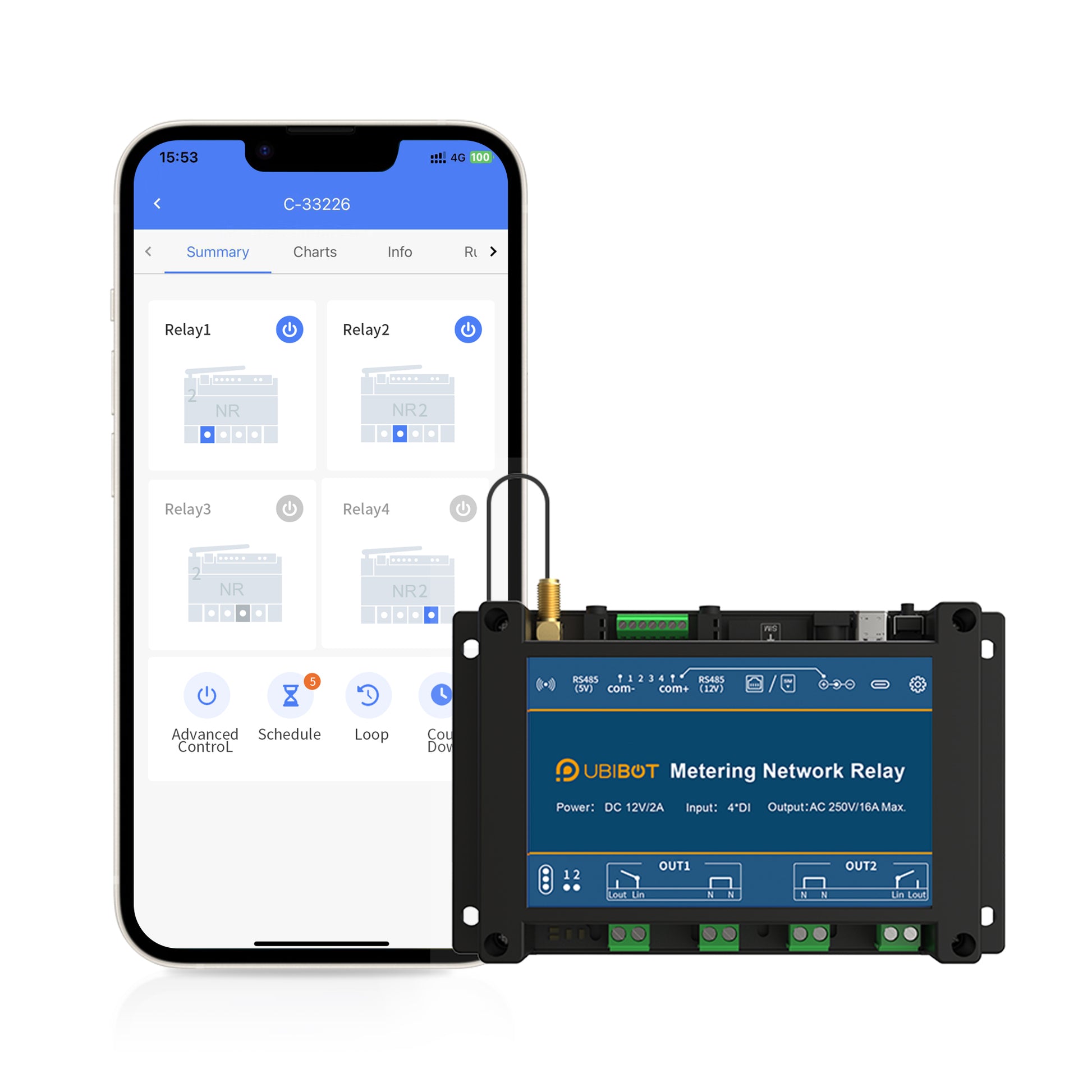

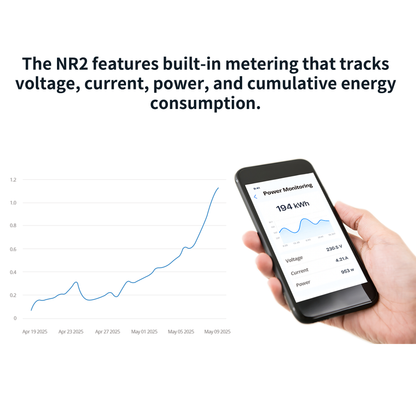

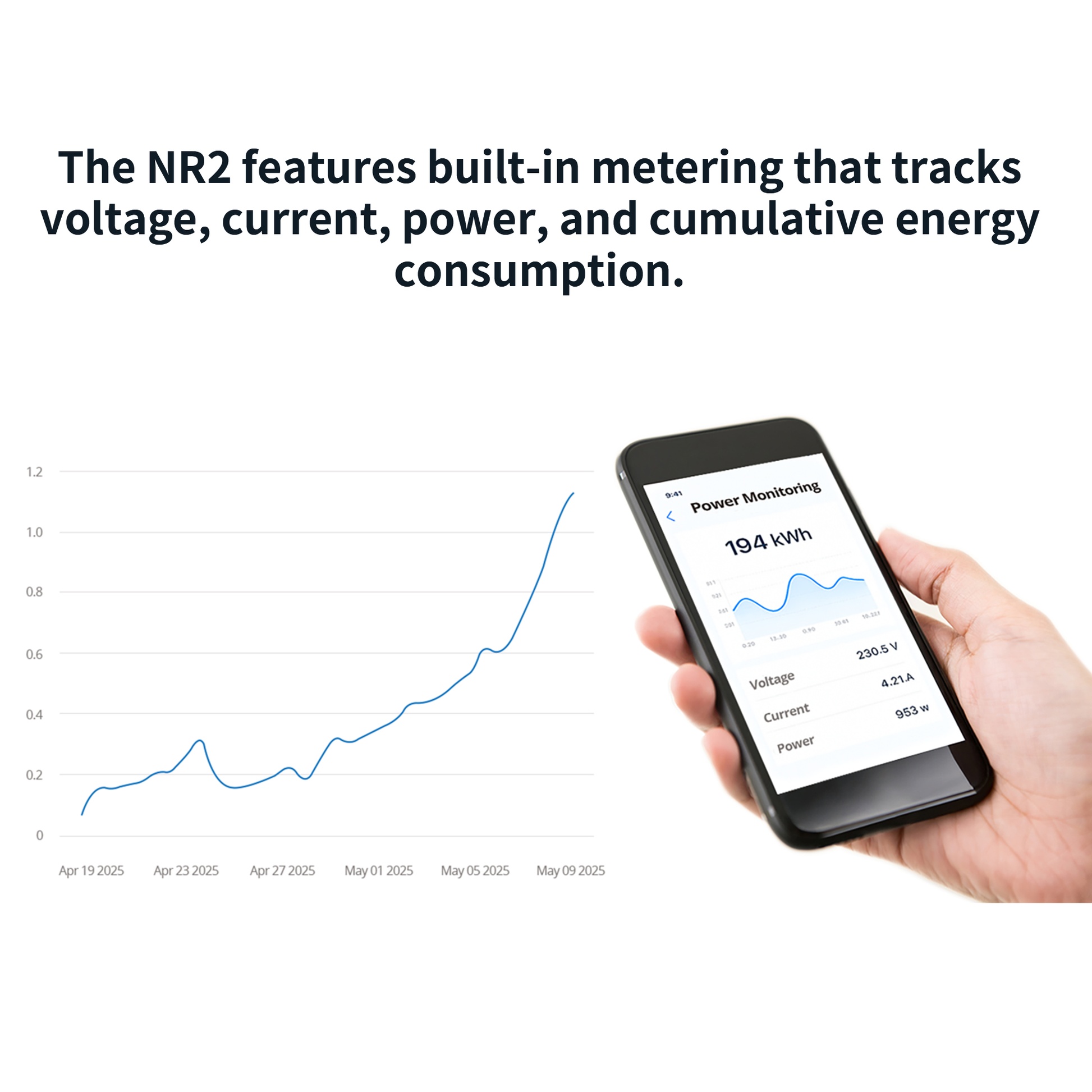

The NR2 features built-in metering that tracks voltage, current, power, and cumulative energy consumption. With the UbiBot App, real-time energy data is always at your fingertips, making power management simpler and more efficient.

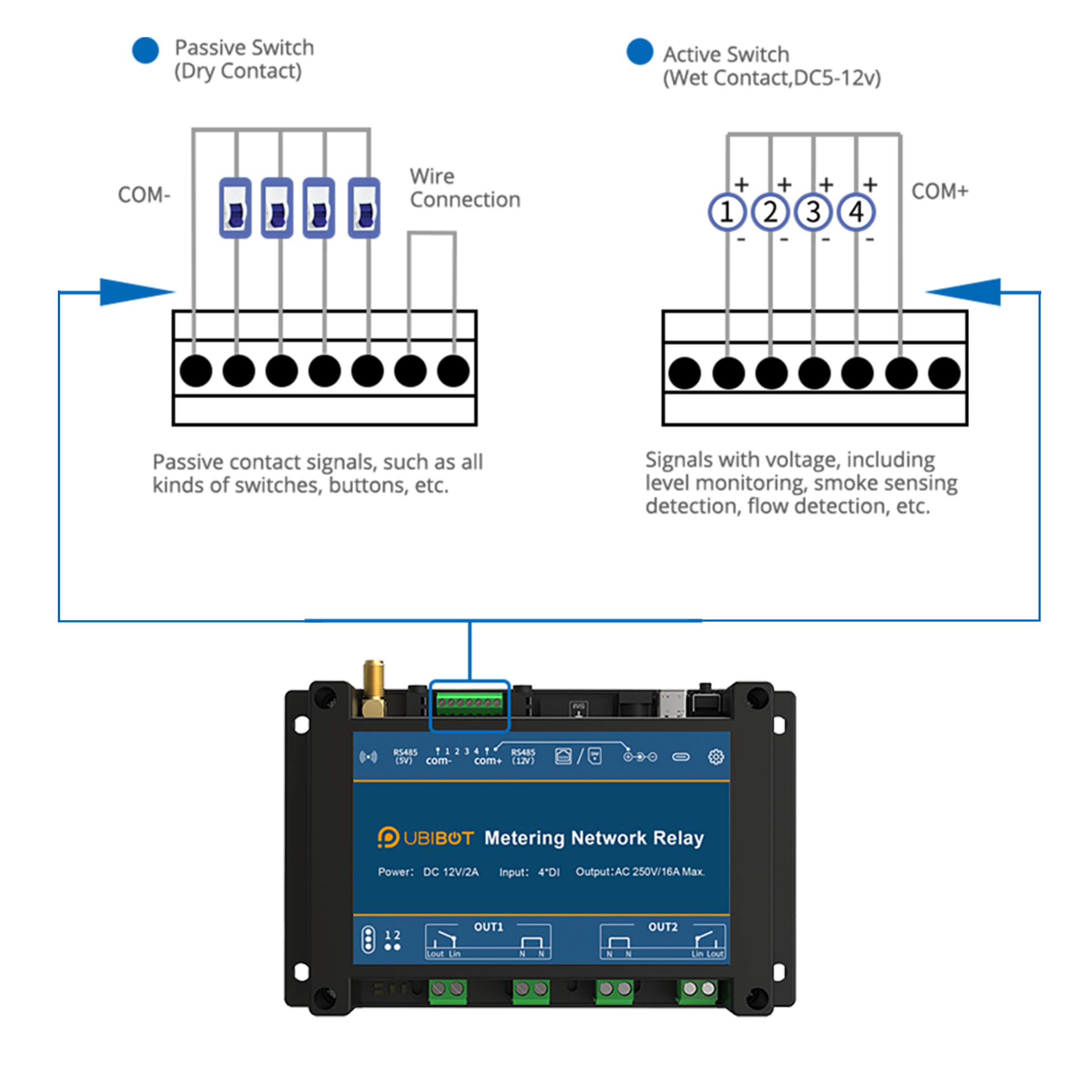

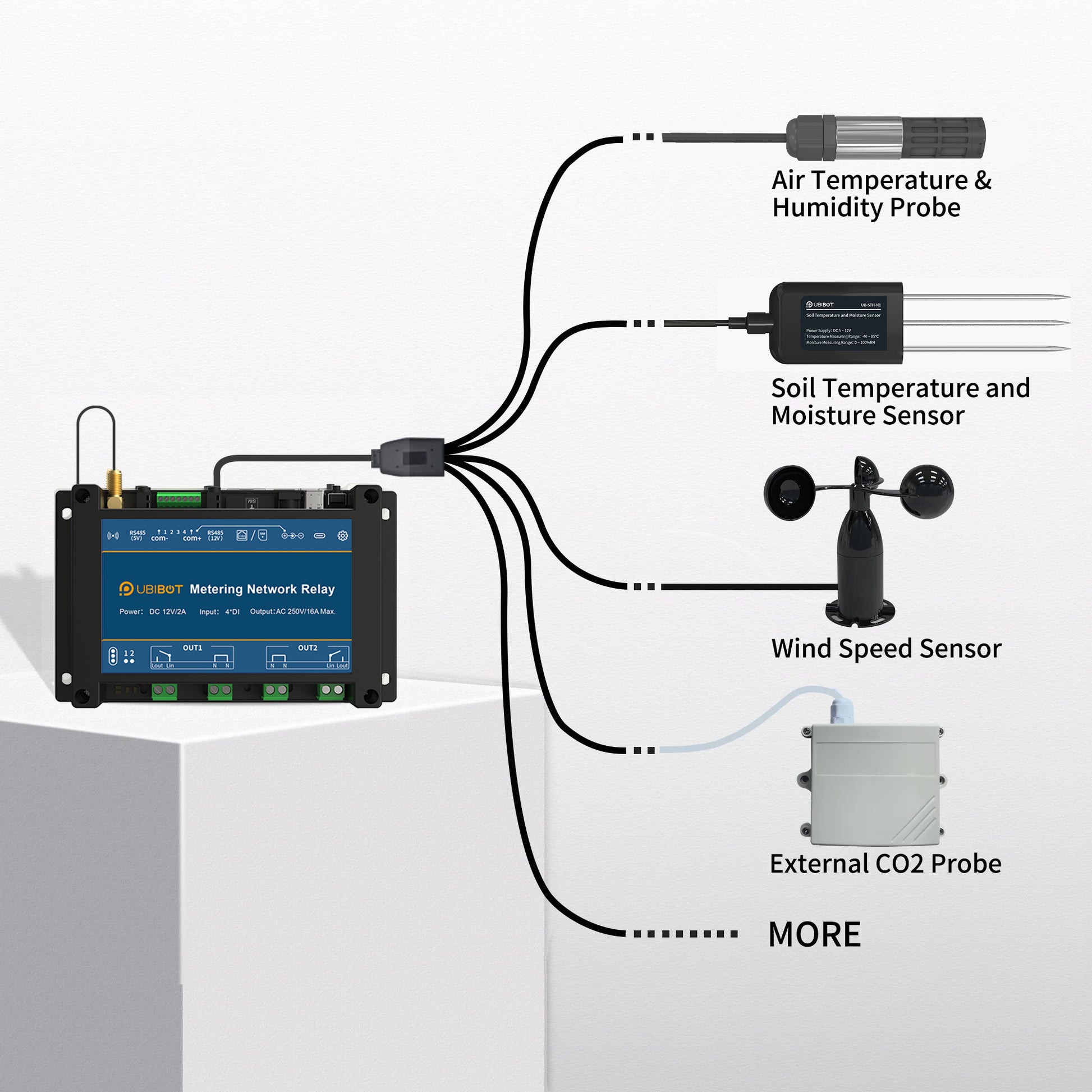

It supports RS485 sensors and digital input acquisition, with flexible control via the UbiBot IoT platform or linkage with other devices. It also offers configurable interlock protection to prevent simultaneous relay activation, along with customizable default relay states for safe, stable, and reliable operation even in unexpected situations.
The UbiBot NR2 combines intelligent metering with reliable remote control, delivering safer, smarter, and more reliable power solutions.
