DS18B20 Temperature Probe

    $ 16.99 USD


● Stainless steel material
● Suitable for extremely hot or cold environment
● Works with all our IoT devices
● Ready to use straight from the box

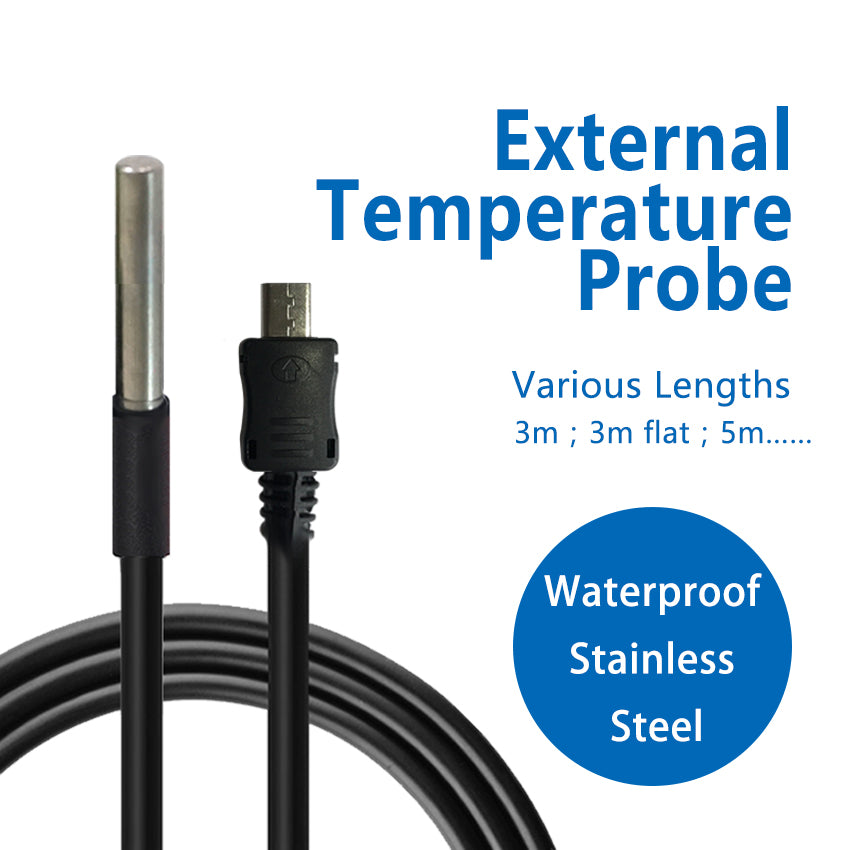

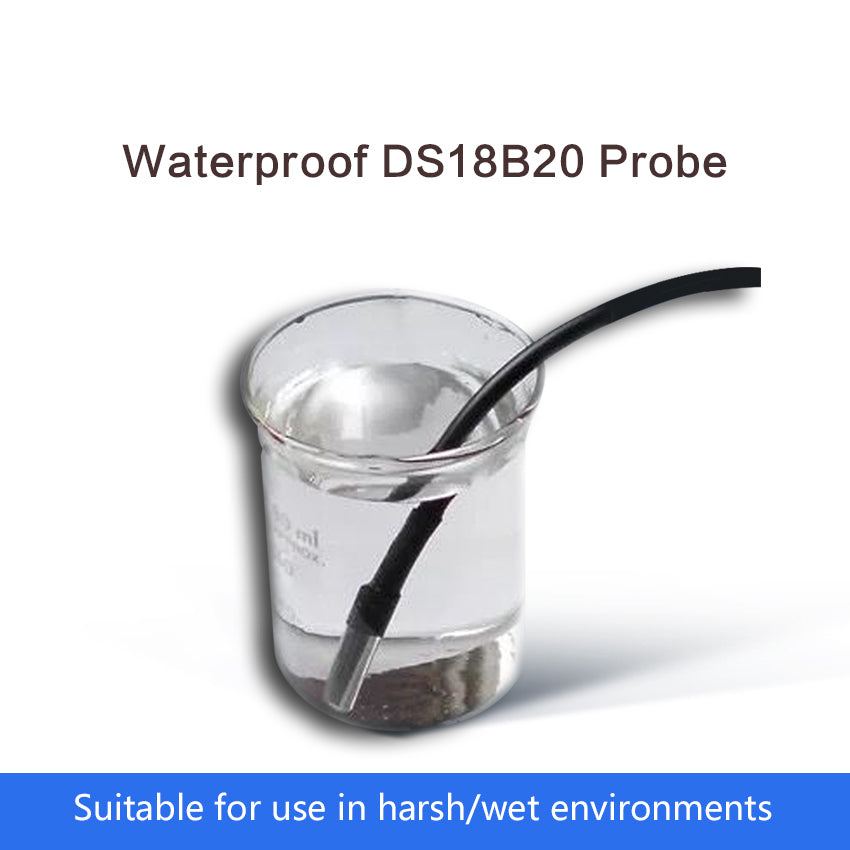

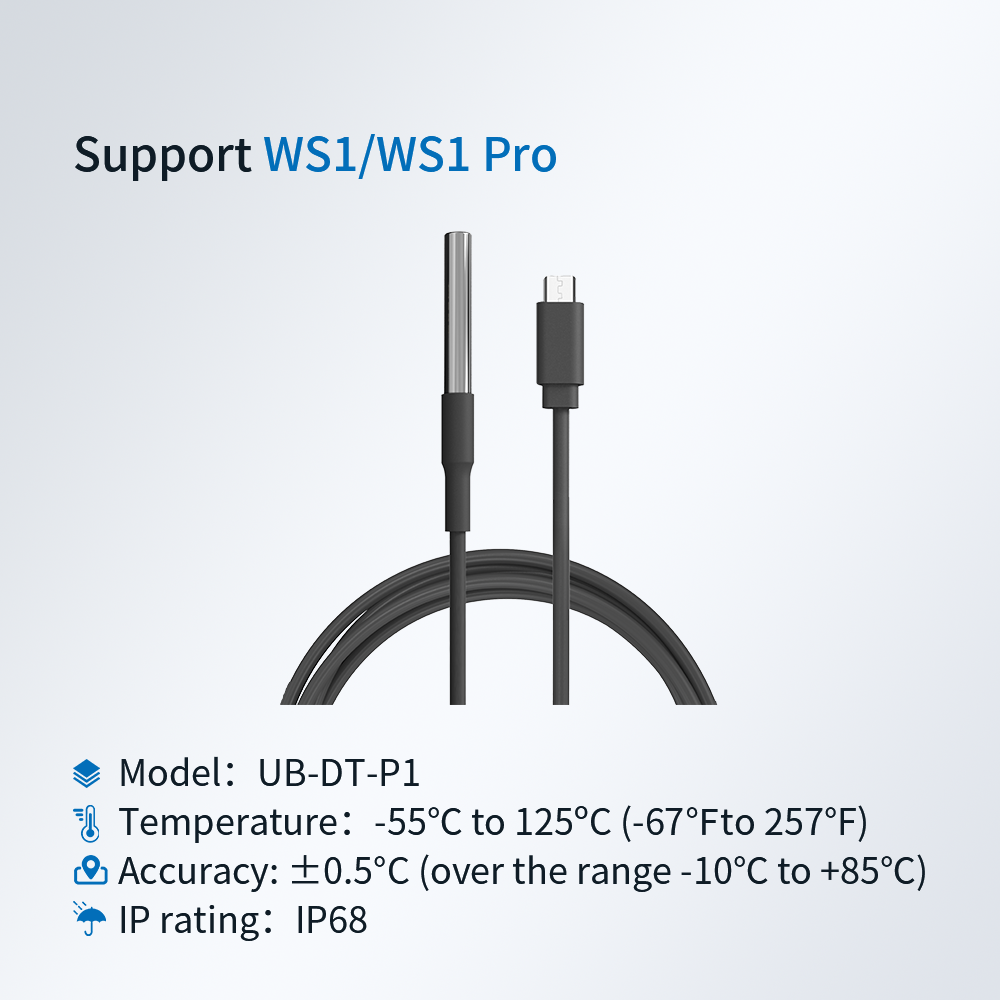

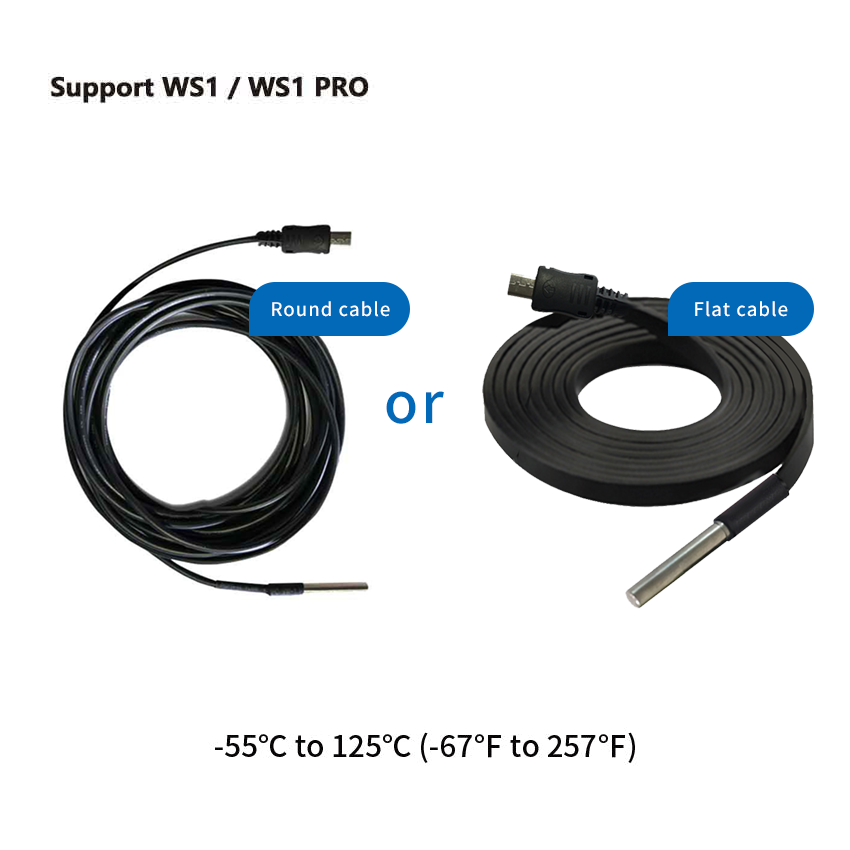

The DS18B20 is a waterproof external temperature probe designed to operate in extreme conditions (-55ºC to 125ºC). The Micro USB connector is compatible with all our smart monitoring devices including the WS1 and WS1 Pro.

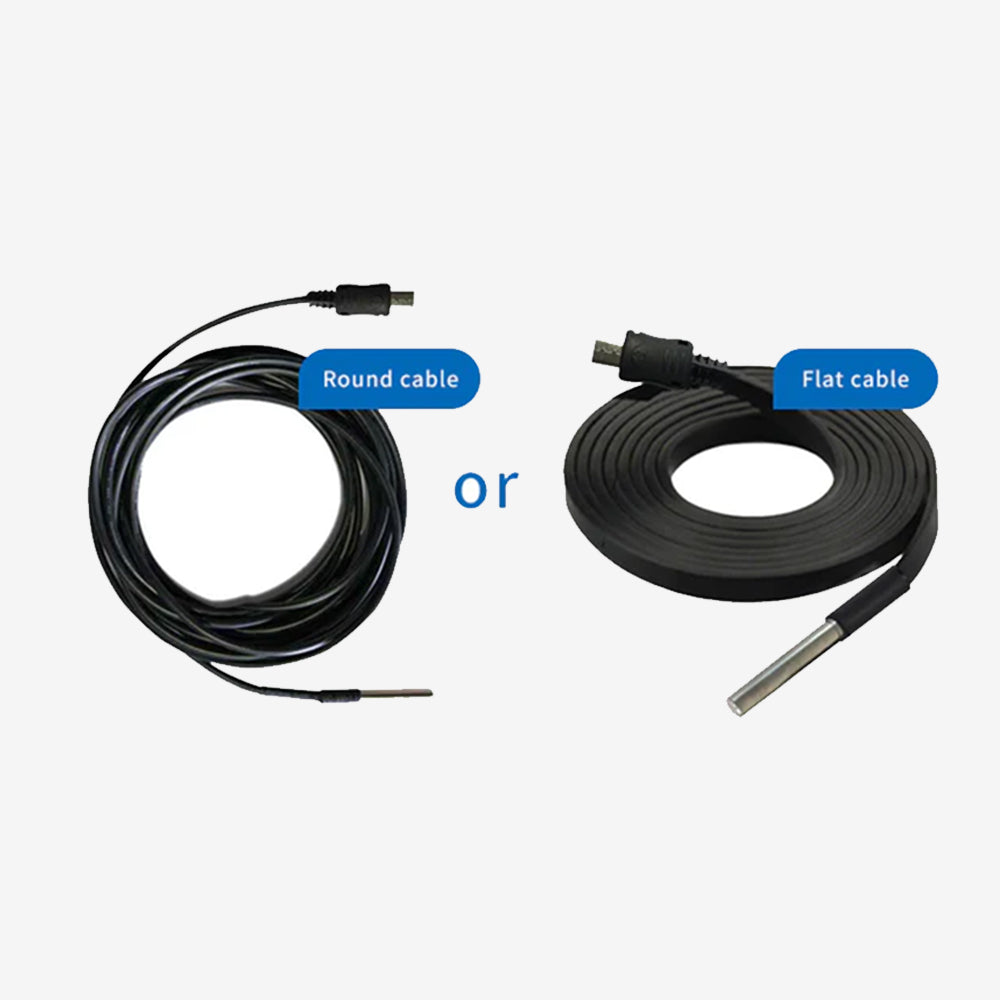

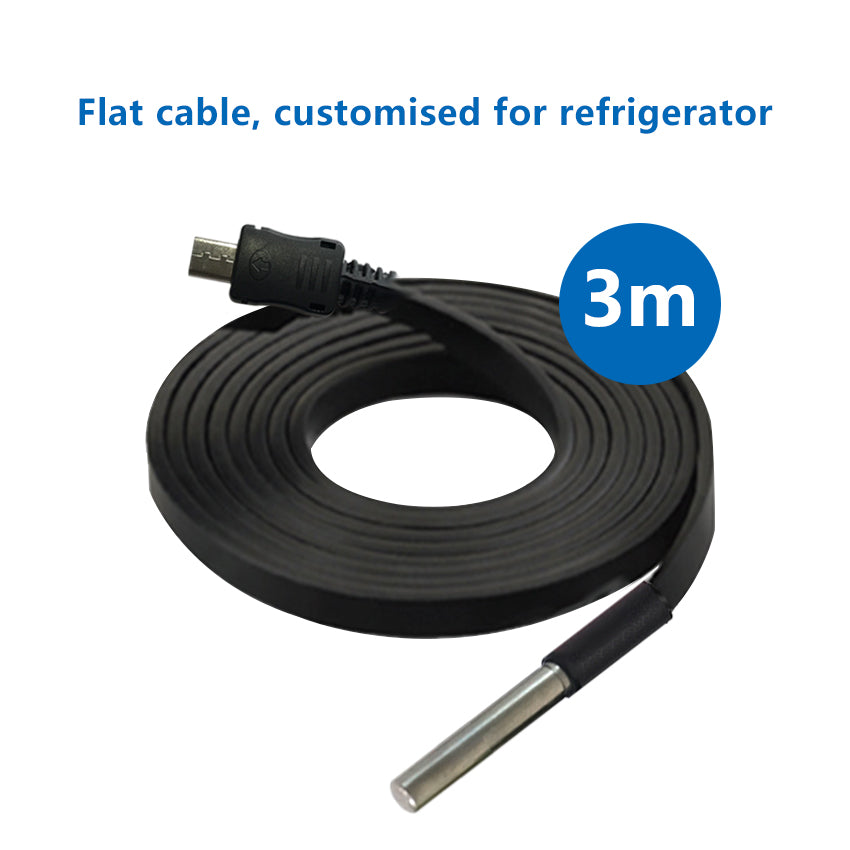

The probe is made from high quality stainless steel, so it won’t rust in any conditions. The flat cable allows you to use the probe in sealed environments like refrigerators or freezers, and the different cable lengths are designed to offer you maximum flexibility.

Part Number DS18B20

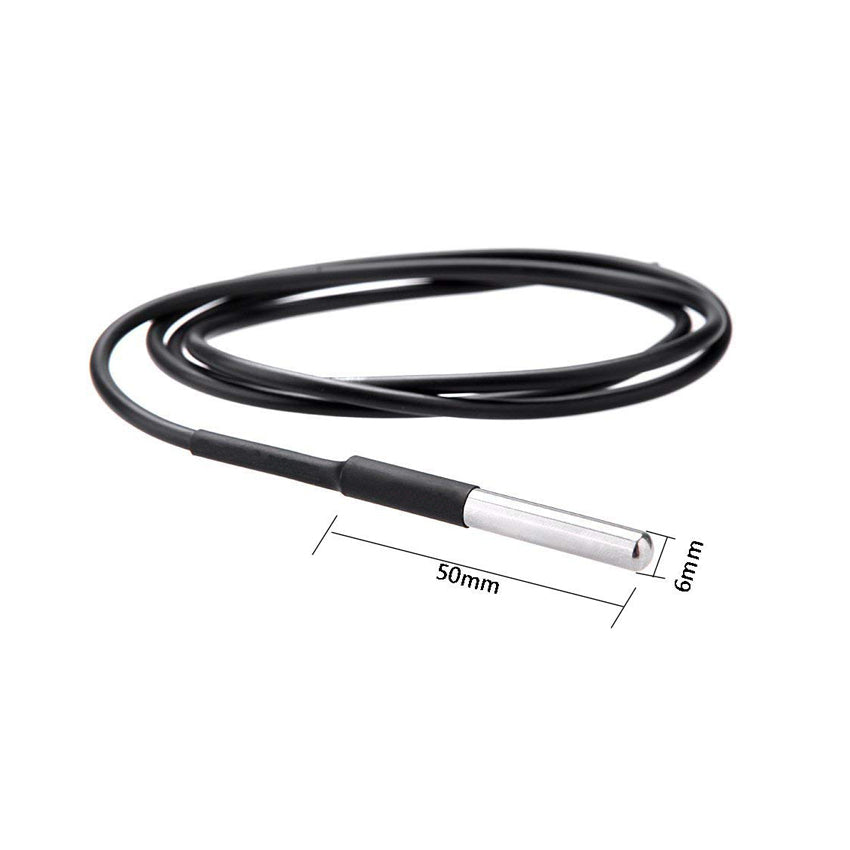

Size of Stainless Steel Shell 6mm diameter x 50mm long

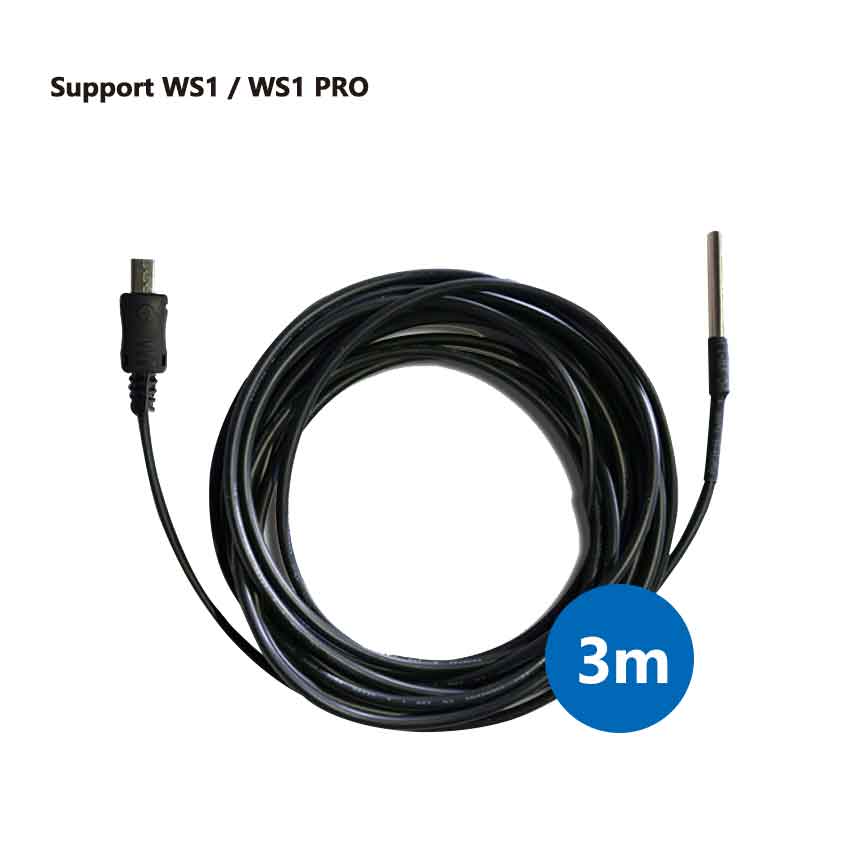

Cable Length 300cm or 500cm
Port Micro USB
Power Supply Range 3.0V to 5.5V
Operating Temperature Range -55°C to +125°C (-67°F to +257°F)
Storage Temperature Range -55°C to +125°C (-67°F to +257°F)
Accuracy over the Range of -10°C to +85°C ±0.5°C ( over the range -10℃ to +85℃)

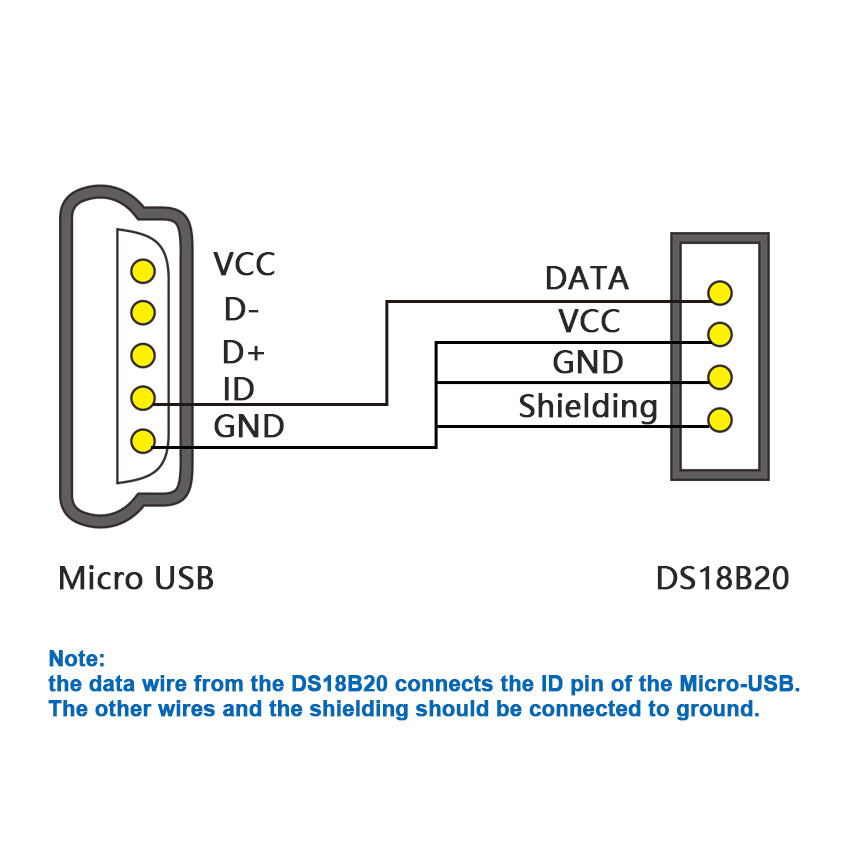

Output Lead red (VCC), yellow(DATA) , black(GND)

*We ship to most countries, including UK, USA, Canada, Australia/NZ, Japan, Germany, France, Netherlands, Spain, Sweden, Italy, Switzerland, UAE, Russia, Singapore, Hong Kong, Taiwan etc. Delivery times and costs will be automatically calculated after you enter your shipping address during checkout. All products are designed in the UK and made in China. Most orders are shipped directly from our manufacturer's warehouse in China.
