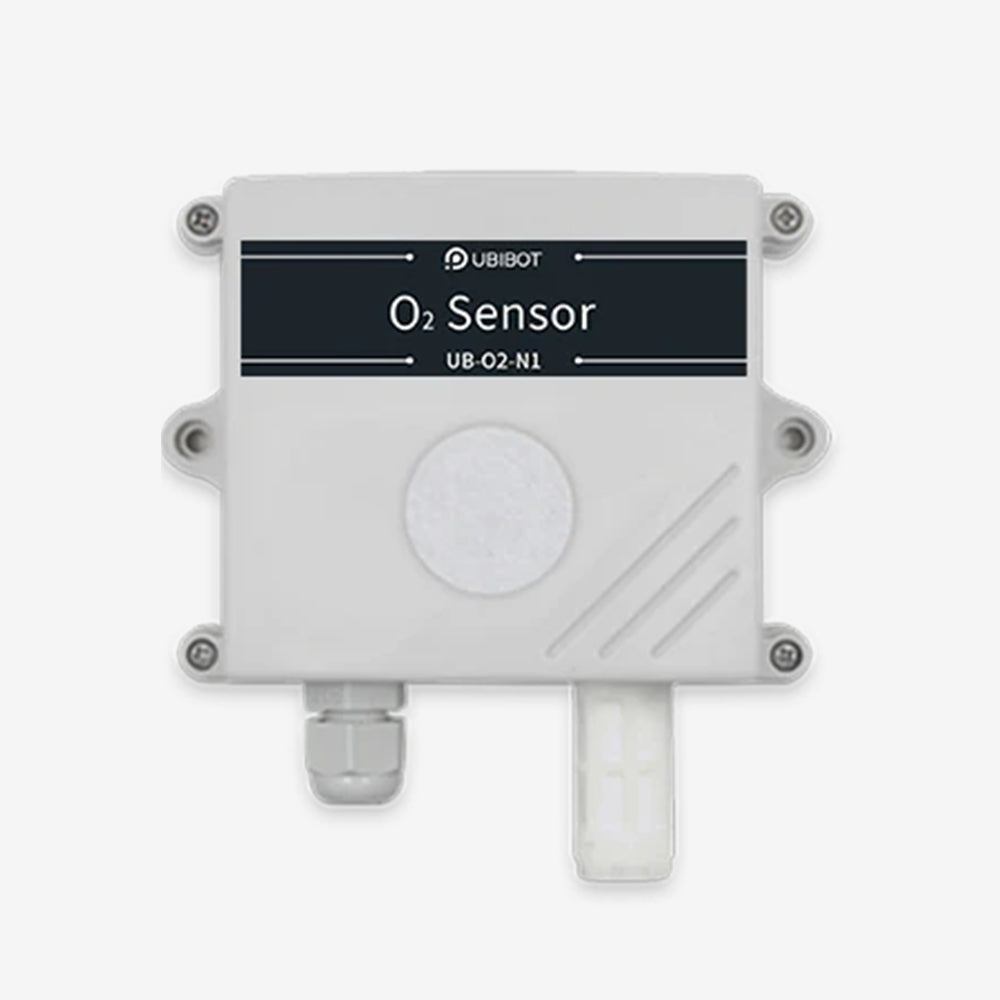

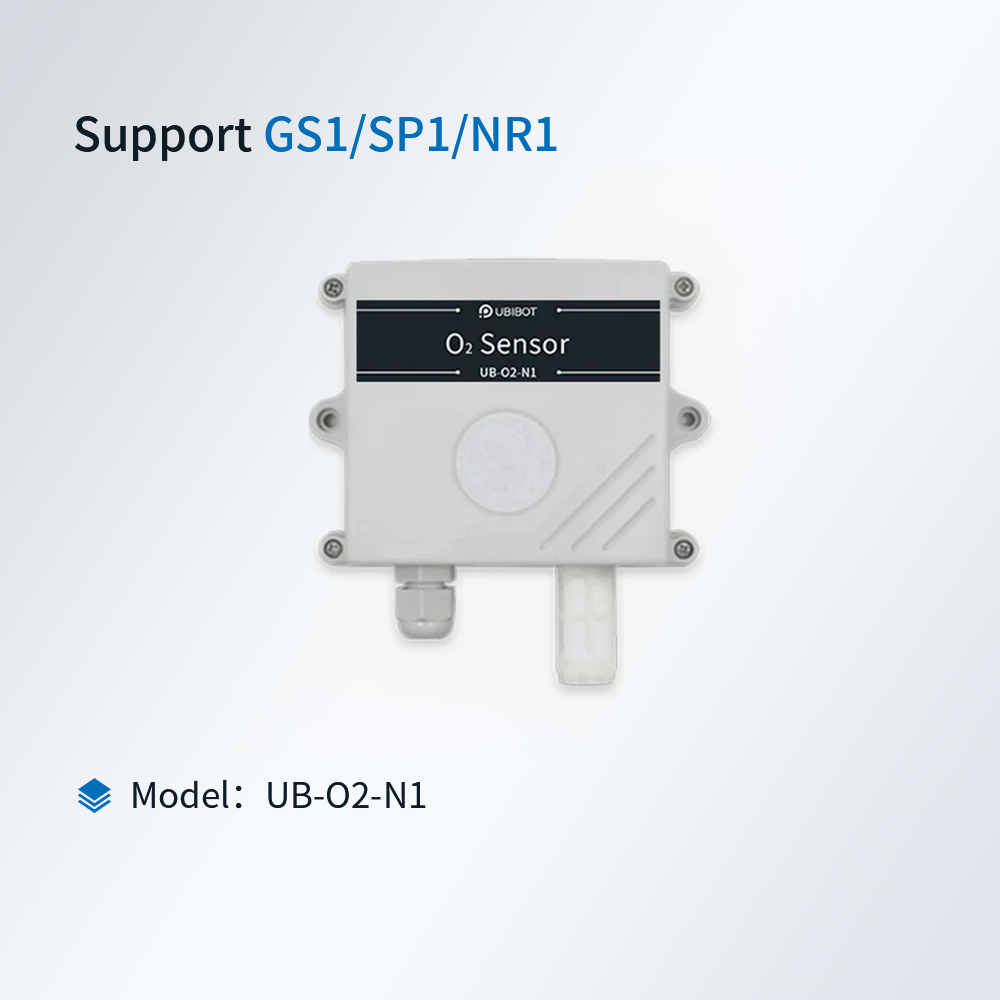

UbiBot Oxygen Sensor
High-Precision Oxygen Monitoring for GS1 SeriesThe UbiBot Oxygen Sensor uses a professional oxygen concentration sensor probe as its core detection component. It features a wide measurement range, high precision, good linearity, and excellent versatility. This sensor is designed for easy installation and long transmission distances, making it an ideal choice for various applications. Compatible with the GS1 series (excluding GS1-A), it requires a 12V power supply and is suitable for the GS1-A1RS-S, GS1-AETH1RS-S, GS1-AL4G1RS-S, and GS1-PL4G1RS-S models.
| Power Supply | 10~30V DC |
| Output Signal | 485 |
| Working Temperature | -20~50℃ |
| Working Humidity | 5~95%RH (non-condensing) |
| Pressure Range | 90~110kPa |
| Stability | ≤5% signal value/year |
| Response Time | ≤10s |
| Preheat Time | ≥5min |
| Zero Drift (-20~40℃) | ±0.3%VOL |
| Repeatability | ≤1% |
| Lifespan | ≥24 months |
| Measurement Range | 0~30%VOL |
| Accuracy | ±3%FS |
| Resolution | 0.1%VOL |
| Compatibility | GS1 Series (excluding GS1-A) |
| Suitable Models | GS1-A1RS-S, GS1-AETH1RS-S, GS1-AL4G1RS-S, GS1-PL4G1RS-S |
