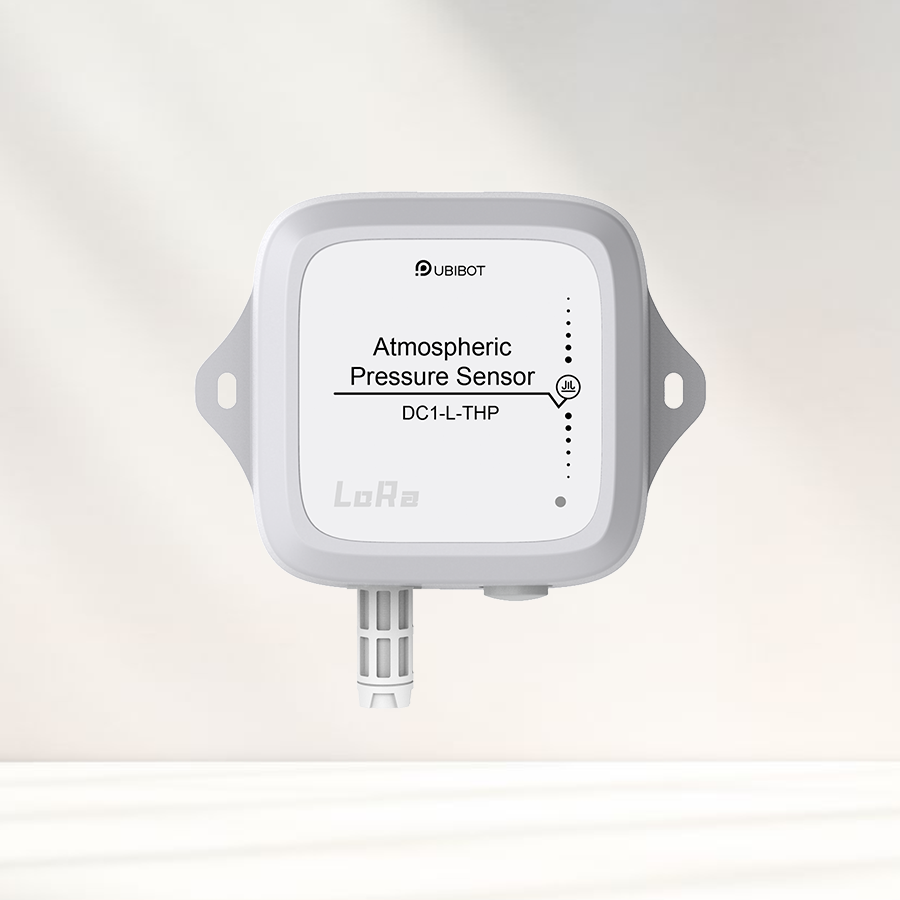

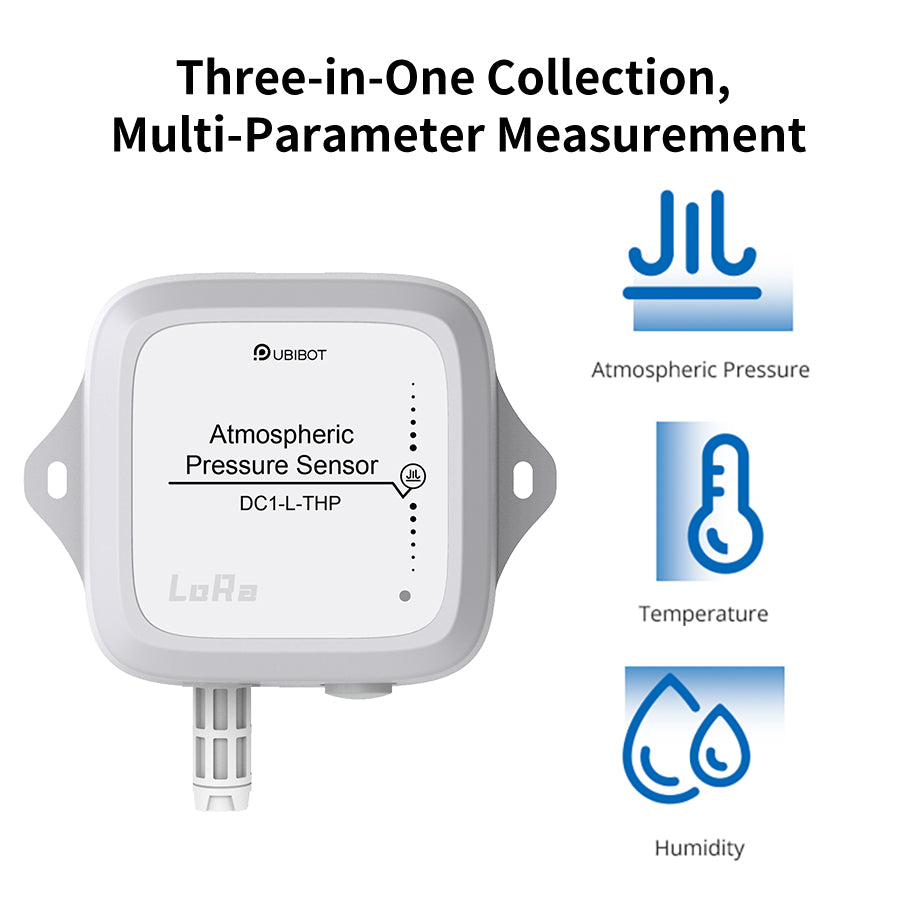

The UbiBot DC1-L-THP integrates high-precision sensors to monitor temperature, humidity, and atmospheric
pressure simultaneously, providing comprehensive and reliable environmental data for applications such as
agriculture, meteorology, and industrial monitoring.

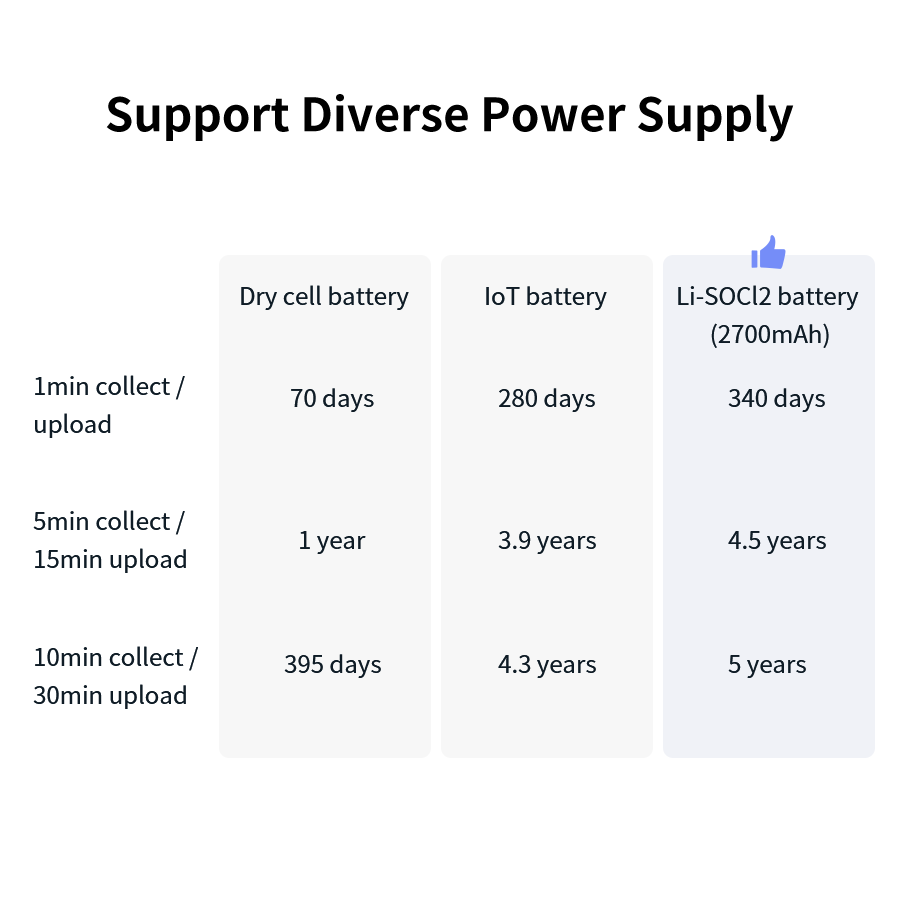

Designed for efficiency, it supports multiple power supply options, including batteries and external DC input.
Combined with LoRa ultra-low power technology, it ensures long standby time and stable 24/7 operation with
minimal energy consumption.

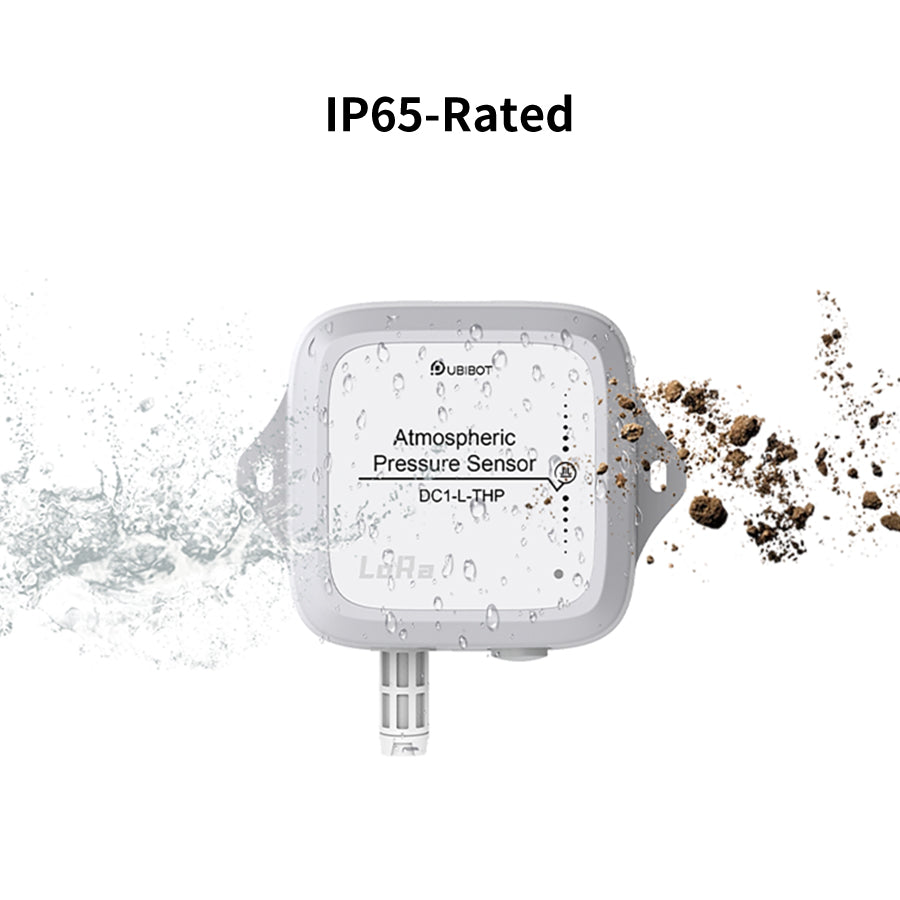

With an IP65-rated enclosure, the device is dustproof and water-resistant, making it suitable for harsh and
outdoor environments.
The DC1-L-THP features local storage of up to 50,000 records, ensuring continuous data logging during network
interruptions, with automatic retransmission once the connection is restored.

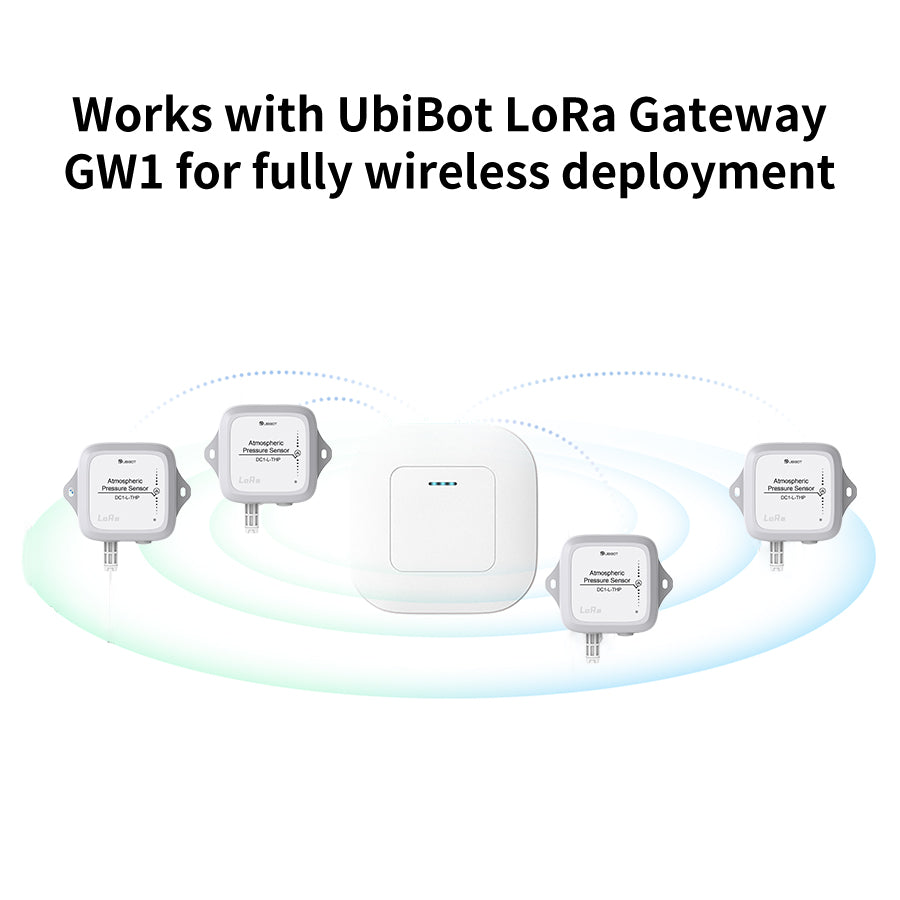

Utilizing LoRa communication technology, it enables long-range wireless transmission without wiring. Paired
with the UbiBot LoRa Gateway GW1 series, it supports real-time remote monitoring via mobile, tablet, and PC.

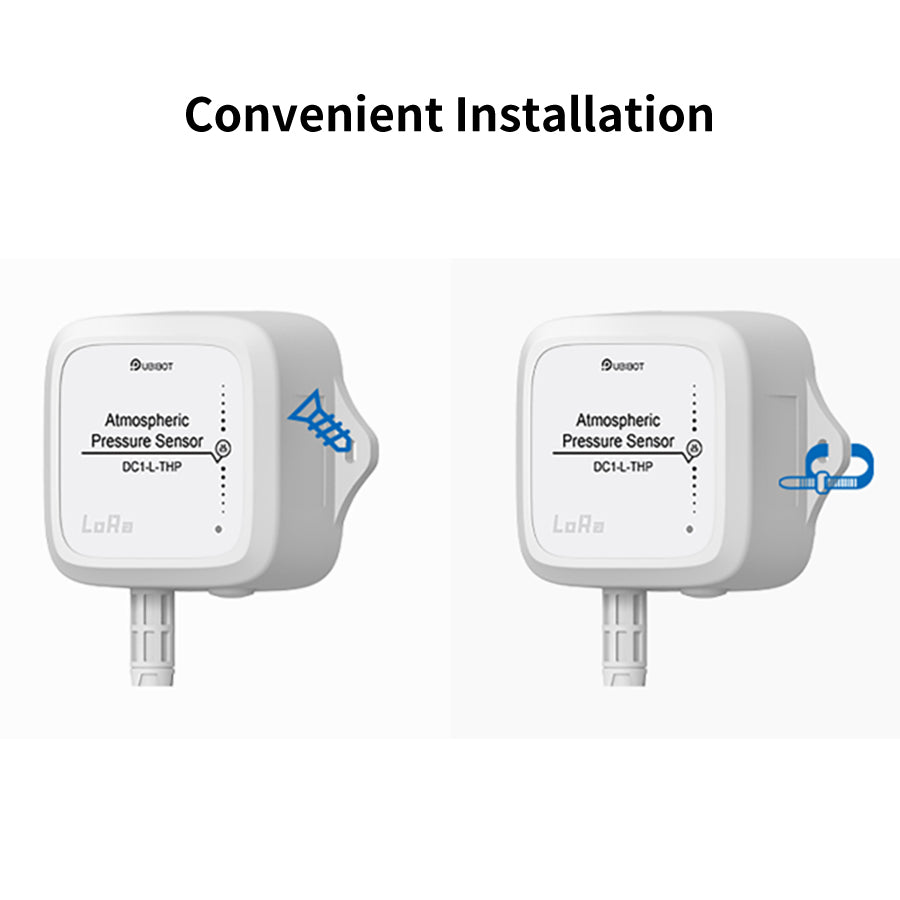

Easy to install with flexible mounting options and quick QR code setup, the DC1-L-THP offers a reliable and
cost-effective solution for environmental monitoring.
Technical specifications
| Dimensions |
108mm × 92mm × 47mm |
| Weight |
151g ± 3 |
| Enclosure Material |
ABS |
| Power Supply |
4 * AA Batteries / 4 * Li-SOCl₂ Batteries / DC 12V |
| Storage Capacity |
Can cache 50,000 data records |
| Protection Rating |
IP65 |
| Operating Environment |
Temperature: -20°C ~ 60°C, Humidity: 10% ~ 90% (non-condensing) |
Communications & Interfaces
| LoRa Frequency Band |
EU868 / US915 / AU915 / RU864 / KR920 / AS923 / IN865 |
| Device Interface |
Type C / DC Port (for power supply) |
Sensors & Accessories
| Internal Sensor |
Atmospheric Pressure: 26 ~ 126kPa, ±50Pa
Temperature: -20 ~ 60°C, ±0.2°C (0 ~ 60°C)
Humidity: 0 ~ 100% RH, ±2% RH (10 ~ 90% RH)
|
DC1-L-THP series device has an IP65 protection rating, which effectively prevents dust ingress and resists
low-pressure water jets. However, when exposed long-term to harsh outdoor environments (such as continuous
rainfall, high humidity, or intense sunlight), there is still a potential risk of moisture or rainwater
gradually infiltrating, which could affect the device's long-term stability and service life.
It is recommended that for outdoor use, the device be installed in a weatherproof outdoor distribution box
or other sheltered environment to enhance its reliability and durability in complex climatic conditions.
