UbiBot WS1 Pro - 2.4GHZ WiFi and SIM version
WiFi or Mobile data transmission, your data is accessible at your fingertip.
WiFi and Mobile Network model: The device can connect to both 2.4GHz WiFi router network and mobile GPRS/3G/4G networking using a SIM card.(SIM card is not provided).
The UbiBot ® WS1 Pro is a state-of-the-art environmental monitoring system that leverages the latest IoT technologies. Collect environmental data in real-time and automatically sync all the data to the UbiBot ®IoT Platform using the built in GPRS/3G/4G and WiFi. The clear 4.4’’ screen allows you to instantly view the latest data. You can also access your device readings in real-time via our App or using a browser anywhere in the world. The embedded RS485 interface ensures your use of external probe in the most extreme conditions.
Our cloud-based IoT platform offers advanced data analysis and management. Configure all of your devices in one Ubibot account by using the Ubibot App. It also allows you to setup real-time notifications - if a metric goes outside the range you specify, the platform will notify you through the app, by email, SMS text, voice call and HTTP, allowing you to respond promptly before costly damage happens. Please note, charges may apply to SMS text and voice call alert modes. These two modes cost the balance of the credits in your account. The IoT platform gives users access to both the real-time data and history via our mobile app or on any browser. We are now working with IFTTT (if this then that), allowing you to build custom link with other smart devices.
The device can store over 300,000 records in its internal memory, which can protect your data against network failure. Even if the network fails, the UbiBot WS1 Pro still stores readings, thus ensuring there are no gaps in the data history.
The data sync interval can be set by you. This allows you to balance battery life against frequency of data capture. With the default data sync interval of 15 minutes, using WiFi connection, the device has a battery life of up to 4- 6 months using 4 AA alkaline batteries.
External Probe Selection:

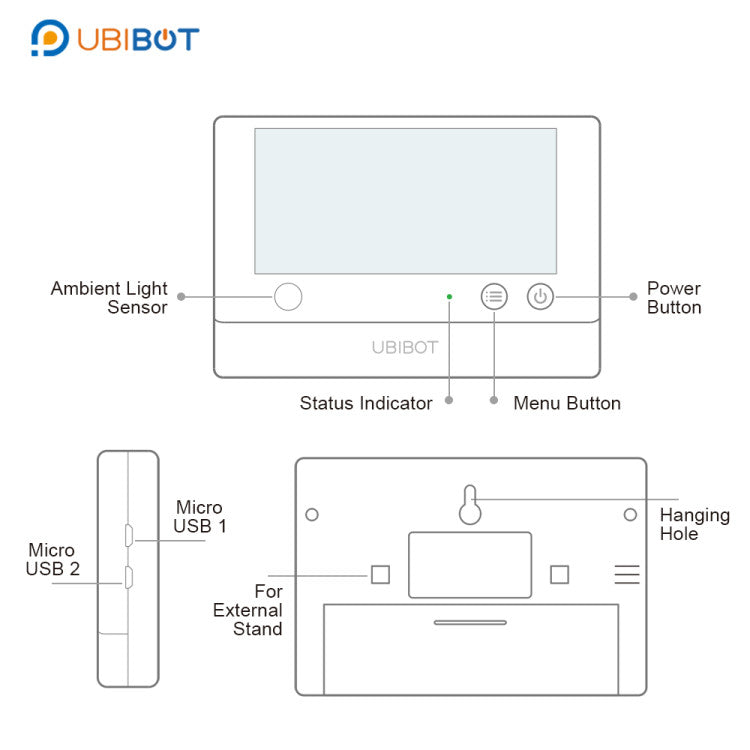

- UbiBot WS1 Pro has two Micro USB ports for connecting external probes or USB power-supply.
- Each of Micro USB port supports 1 x external DS18B20 temperature probe. Temperature range and option can be found here.
- The lower Micro USB port also supports one of the following three probes at a time:
- We recommend to buy On-board Port Splitter (One Male to Two Female) if you want to use external USB power-supply and two external probes at the same time.
Probe Connection Diagram:
Water Resistant / Rainproof Option for Outdoors:
The WS1 Pro is not water resistant. For outdoor usage, we suggest to use UbiBot water-resistant case.
|Weight||143g ± 3g|
|Dimensions||12.6 x 8.6 x 2.25 cm|
|Material||flame resistant ABS+PC|

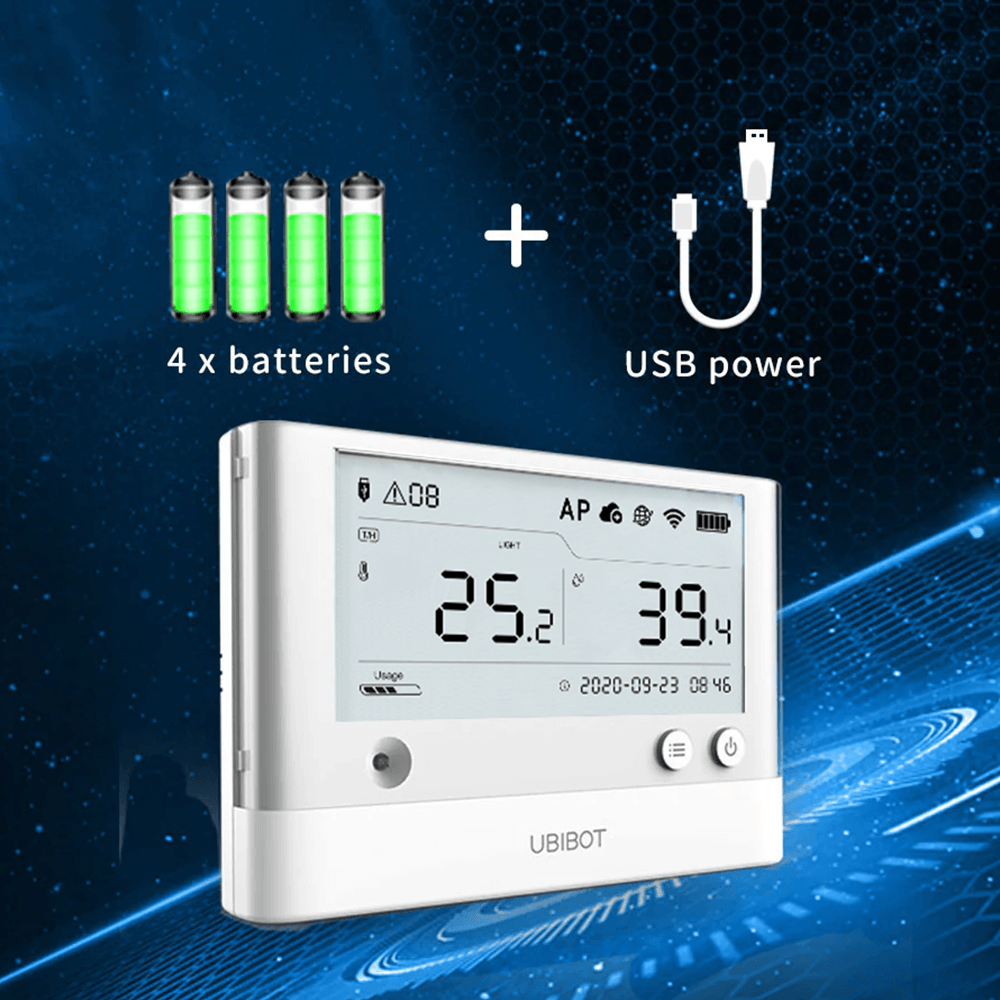

|Power Source||4 x AA batteries /Micro USB（5V/2A）|
|Battery Life||8-12 months (WiFi only), 1-2 months (WiFi and SIM), 1-4 weeks (SIM)*|
|Screen||10.4 x 5cm (4.4’’)|
|Ports||2 x Micro USB, the USB 2 is embedded with RS485 interface|

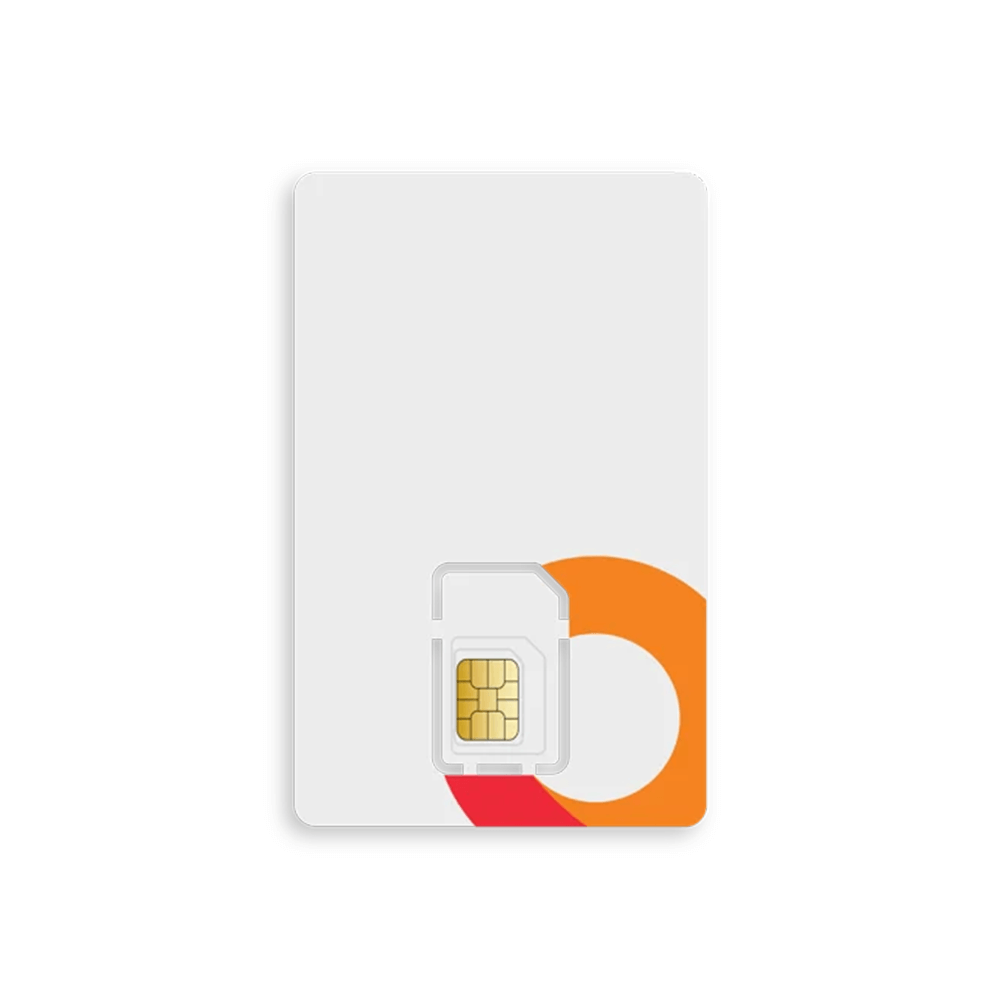

|Type of SIM Card||Micro SIM card|
|External Probe||Supports DS18B20 x 2, and TH30S-B x 1 / Soil probe x 1 / PT-100 x 1|
*The quoted battery life was tested using VARTA industrial batteries under stable signal conditions with default synchronisation and sampling settings.
|Temperature||-20℃ to 60℃( -4℉ to 140℉)|
|Humidity||10% to 90%, No condensation|
|Accuracy||Temperature ±0.3 ℃, humidity ±3%, ambient light ±2%|
|Memory||300,000 sensor records|
|WiFi Specifications||2.4GHz, channels 1-13 (5GHz WiFi NOT supported)|
Supports GPRS/3G/4G (micro SIM).
LTE FDD: B1/ B3 /B5/ B8
LTD TDD: B34/ B38/ B39/ B40/ B41
WCDMA: B1/ B8
TD-SCDMA: B34/ B39
List of one single pack:
● 1 x WS1Pro device
● 1 x manual book
● 1 x USB cable
● 1 x stand
List of bulk pack:
● 10 / 20 x WS1Pro device
● 1 x manual book
● 10 / 20 x USB cable
● 10 / 20 x stand
Tips: Devices in the bulk pack is packed in a custom box with PE foam separated. There is no packaging for each item. Please be assured, all the devices are well protected under the PE foam.
1. Does the device collect data when the network is unavailable?
Yes. The device continues to monitor the environment even when no network is available. It stores the data in its on-device memory and will sync it when you move it to WiFi environment. Alternatively, you can manually export the data via our PC Offline Tool or WiFi AP.
For this version, you can insert a Micro SIM card as backup for the WiFi unavailable situations.
2. How to reset the device when my WiFi router password is changed?
Repeat the device setup steps and follow the on-screen instructions. Note: you need to type in the new WiFi password. All your data are kept unchanged when you changed the WiFi password or even you move the device to a new location.
3.What kind of probe can be connected with the device?

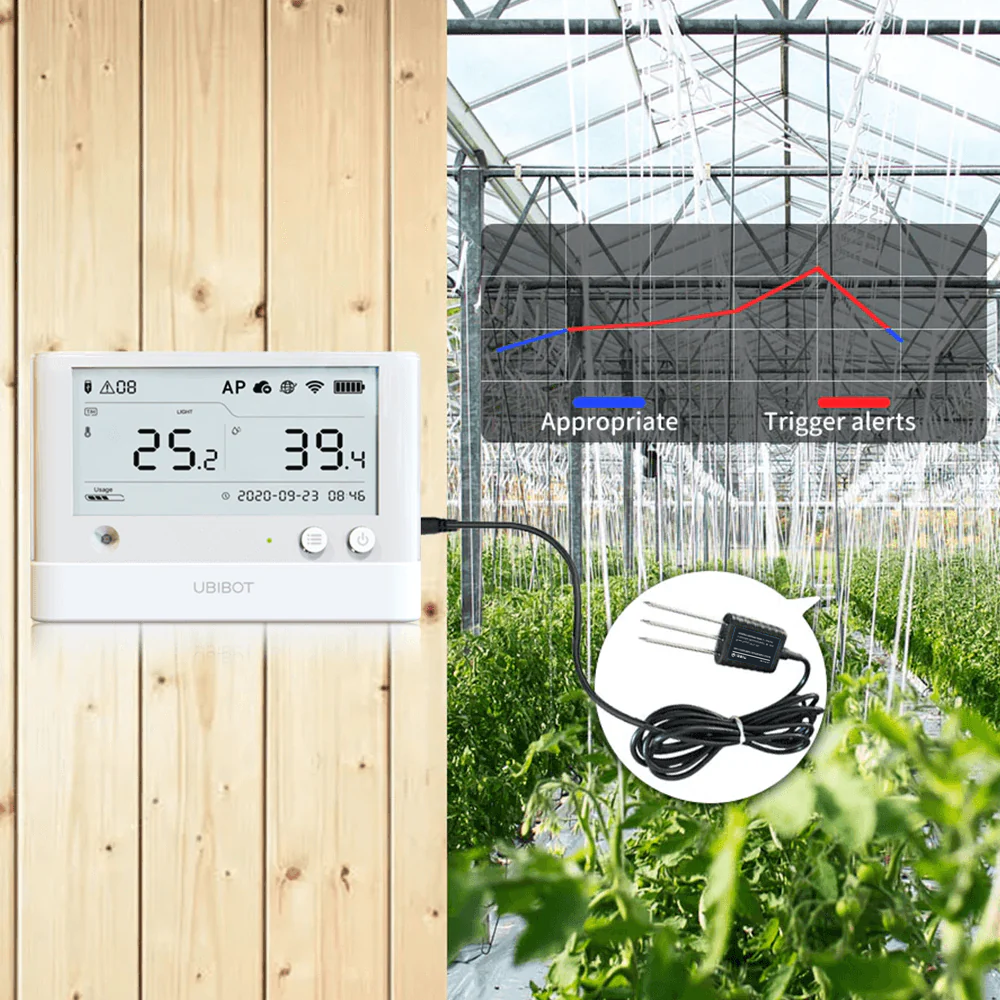

The WS1 Pro supports 2 x DS18B20 temperature probe. The embedded RS485 interface allows soil temperature & humidity probe as well as environment temperature & humidity probe to be connected.
4.Is there any subscription fee for using the platform?
There is no need of subscription to use the UbiBot Platform.
5. How long will the batteries last?
With the default sync interval of 15 minutes, the device has a battery life of up to 4-6 months in the WiFi only mode using 4 AA alkaline batteries. When in the SIM card mode, the batteries can last up to 1-2 months.
The device also supports USB power supply (5V/2A). You can plug the device to the wall socket via USB adapter. In this case, you can also insert 4 AA batteries as backup.
6. Why couldn't I receive the verification email for registration?
The email is probably blocked by your email server. Please check your spam or junk mail first. If there isn't, please send us your registration email address via email@example.com so as to check the status from our server end.
For more other questions, please visit our website at www.ubibot.io/category/faqs/
